Soil Moisture Sensor, Soil Moisture Meter, Soil Humidity Sensor, Water Sensor, Soil Hygrometer for Arduino

Name: Soil Moisture Sensor, Soil Moisture Meter, Soil Humidity Sensor, Water Sensor, Soil Hygrometer for Arduino
Brand: ROBOTICS EMBEDDED EDUCATION SERVICES PRIVATE LIMITED
Price: 35.0 INR
Availability: InStock

Price 35.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Soil Moisture Sensor, Soil Moisture Meter, Soil Humidity Sensor, Water Sensor, Soil Hygrometer for Arduino Specification

Features

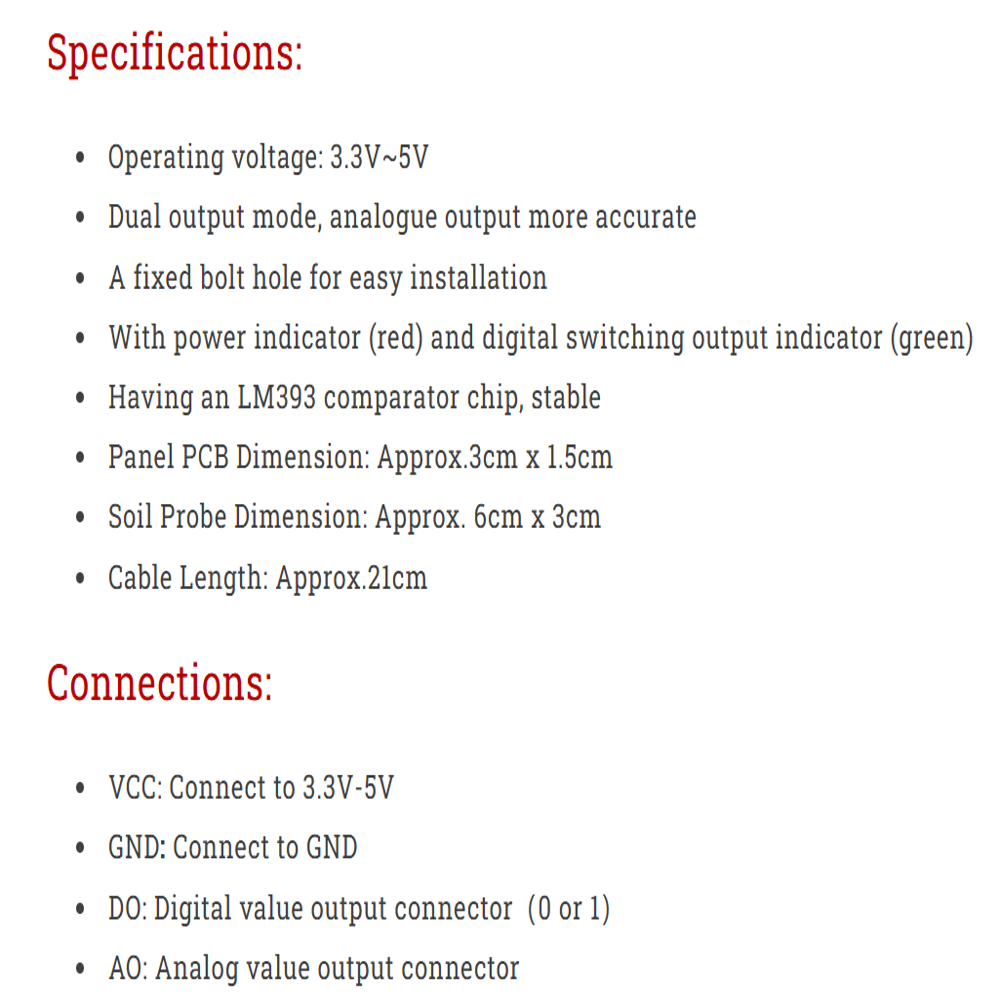

Operating voltage: 3.3V~5V Dual output mode, analogue output more accurate A fixed bolt hole for easy installation With power indicator (red) and digital switching output indicator (green) Having an LM393 comparator chip, stable Panel PCB Dimension: Approx.3cm x 1.5cm Soil Probe Dimension: Approx. 6cm x 3cm Cable Length: Approx.21cm Connections:

Application
Operating voltage: 3.3V~5V Dual output mode, analogue output more accurate A fixed bolt hole for easy installation With power indicator (red) and digital switching output indicator (green) Having an LM393 comparator chip, stable Panel PCB Dimension: Approx.3cm x 1.5cm Soil Probe Dimension: Approx. 6cm x 3cm Cable Length: Approx.21cm Connections:

Response Time
Hours

Operating Temperature
Fahrenheit (oF)

Signal Type
Analog

Cable Length
Meter (m)

Wireless
Yes

Sensor Type
Soil Sensor

Product Type
Sensor

Accuracy
mg

Voltage
Ampere (amp)

Weight
Grams (g)

Usage & Applications
Operating voltage: 3.3V~5V Dual output mode, analogue output more accurate A fixed bolt hole for easy installation With power indicator (red) and digital switching output indicator (green) Having an LM393 comparator chip, stable Panel PCB Dimension: Approx.3cm x 1.5cm Soil Probe Dimension: Approx. 6cm x 3cm Cable Length: Approx.21cm Connections:

Warranty
6

Rated Current
Ampere (amp)

Material
Sensor

Frequency
Hertz (HZ)

Soil Moisture Sensor, Soil Moisture Meter, Soil Humidity Sensor, Water Sensor, Soil Hygrometer for Arduino Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Soil Moisture Sensor, Soil Moisture Meter, Soil Humidity Sensor, Water Sensor, Soil Hygrometer for Arduino

This is an easy-to-use digital Soil Moisture Sensor. Just insert the sensor into the soil and it can measure moisture or water level content in it. Soil Moisture Sensor gives a digital output of 5V when the moisture level is high and 0V when the moisture level is low in the soil. The Soil Moisture Sensor includes a potentiometer to set the desired moisture threshold.

When the sensor measures more moisture than the set threshold, the digital output goes high and an LED indicates the output. When the moisture in the soil is less than the set threshold, the output remains low. The digital output can be connected to a microcontroller to sense the moisture level. The Soil Moisture Sensor also outputs an analogue output which can be connected to the ADC of a microcontroller to get the exact moisture level in the soil. This sensor is great for making water gardening projects, water sensing, etc.

Accurate Dual Output Moisture Monitoring

Equipped with both analog and digital outputs, this soil hygrometer provides more accurate and versatile soil moisture readings. The analog output delivers precise moisture levels, while the digital output offers easy threshold-based monitoring. This dual functionality makes it suitable for a range of gardening, agricultural, and research applications.

Convenient Installation and Operation

The soil moisture sensor is designed for straightforward installation with a fixed bolt hole, enabling secure placement in both indoor and outdoor setups. The red power indicator and green digital switching output indicator make monitoring real-time status simple. Its compatibility with Arduino and similar microcontrollers ensures seamless integration into automated systems.

FAQ's of Soil Moisture Sensor, Soil Moisture Meter, Soil Humidity Sensor, Water Sensor, Soil Hygrometer for Arduino:

Q: How does the soil moisture sensor connect to an Arduino?

A: The sensor connects to the Arduino using three wires: VCC (power, 3.3V~5V), GND (ground), and the signal (analog or digital output). The included 21cm cable makes connections straightforward.

Q: What is the benefit of dual output modes?

A: Dual output modes provide both analog and digital signals, allowing for greater flexibility. Analog output enables precise moisture level readings, while digital output can trigger automated actions based on set thresholds.

Q: Where can this soil moisture sensor be used?

A: This sensor is suitable for a variety of platforms, including gardens, greenhouses, farms, and indoor plant monitoring. It's designed for integration with Arduino and similar development boards.

Q: When should I use the analog output versus the digital output?

A: Use the analog output when you need detailed moisture data for logging or precise monitoring. The digital output is ideal for simple on/off control, such as triggering a water pump when moisture falls below a certain level.

Q: What are the installation steps for this sensor?

A: Attach the soil probe into the ground, secure it using the fixed bolt hole, and connect the cable to your microcontroller. Make sure the power indicator LED lights up, confirming proper connection.

Q: How does the LM393 comparator chip improve performance?

A: The LM393 comparator ensures stable and consistent readings by minimizing fluctuations in sensor output, offering enhanced reliability for soil moisture measurements.
