Weeemake 12 in 1 WeeeBot RobotStorm STEAM Robot Kit

Weeemake 12 in 1 WeeeBot RobotStorm STEAM Robot Kit About

Description

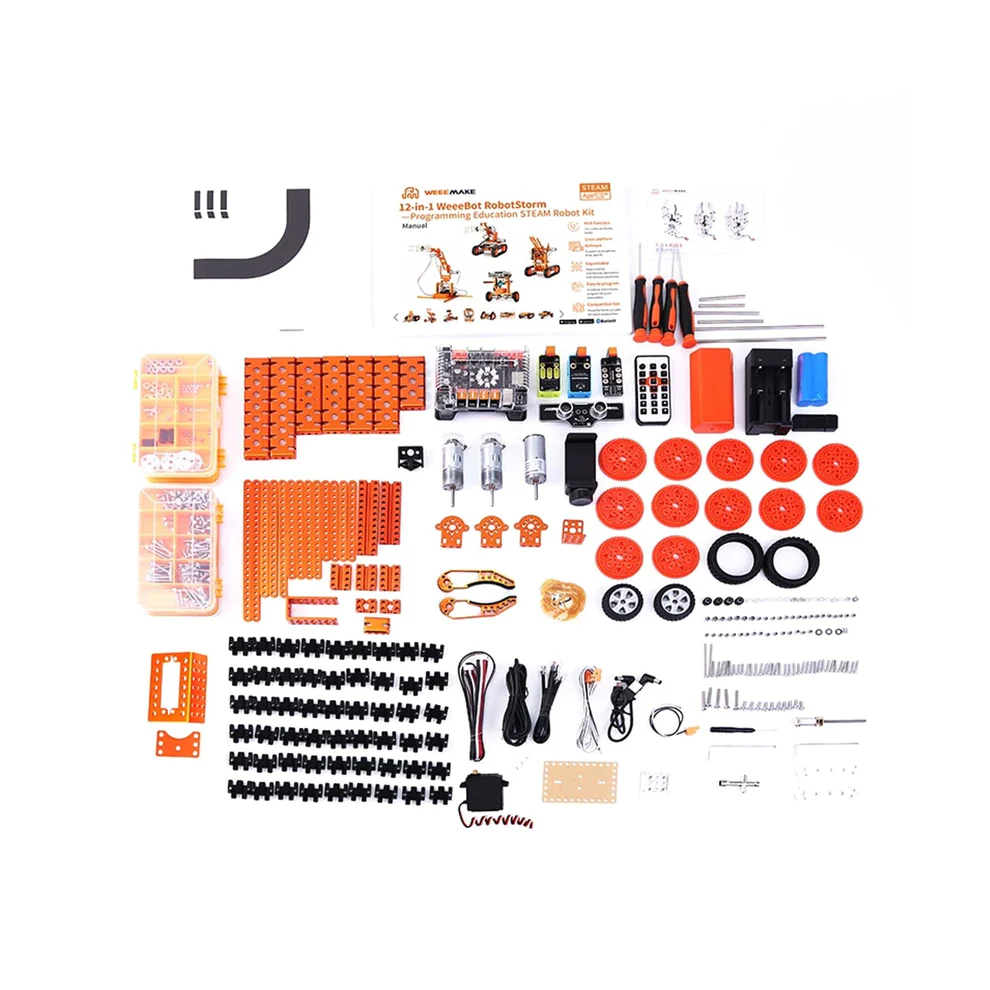

The Weeemake 12-in-1 WeeeBot RobotStorm STEAM Robot Kit distributed by REES52 is an ultimate, industrial-grade multi-form robotics platform engineered for comprehensive STEAM education, high-tier innovation labs, and advanced student robotics competitions. Housing a powerful library of over 450 mechanical partsincluding heavy-duty anodized structural beams, tracks, brackets, and a professional metal gripperthis kit allows students to reconstruct a single hardware layout into 12 completely distinct pre-set robotic personas (such as a Robot Arm Tank, Forklift Robot, and a Self-Balancing Robot).

Powered by the elite ELF Mainboard featuring a unique modular design with a replaceable microchip, it natively supports ATmega328P and ESP32 computing cores. Utilizing error-free RJ11 plug-and-play wiring loops and offering a fluid code transition path from Scratch-based graphical blocks (WeeeCode) to text-based Arduino C++, this comprehensive toolkit stands as a premiere B2B hardware deployment asset for engineering universities, K12 technical schools, and smart classroom infrastructures.

The 12-in-1 Morphological Robotics Fleet

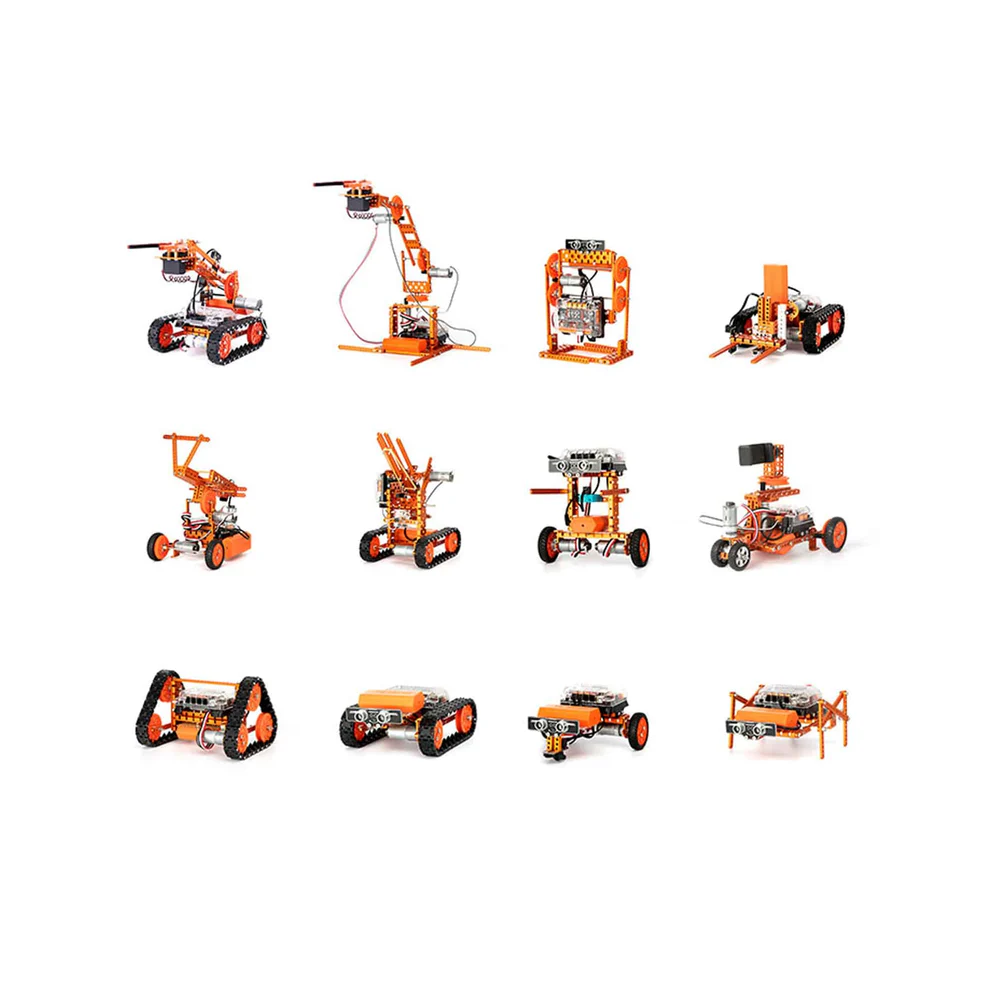

The RobotStorm kit includes pre-mapped blueprints and code trees to construct 12 highly functional, real-world machinery structures straight out of a single box:

1. Robot Arm Tank: A tracked continuous vehicle mounting a heavy mechanical arm and functional steel gripper claw to fetch items.

2. Forklift Robot: Implements a mechanical linear slider slider framework to lift and stack objects up off the ground.

3. Walking Robot: Simulates anthropomorphic bipedal walking movements using unique motor transmission lines.

4. Self-Balancing Robot: Uses the onboard 3-axis gyro sensor and dual encoder motors to maintain dynamic two-wheel inverted pendulum balance.

5. Bartender Robot: Designed with an ultra-steady moving chassis configuration to safely hold and pour standard beverage bottles.

6. Camera Dolly: An ultra-smooth tracking platform designed to hold mobile phones or optics for vibration-free imaging.

7. Rolling Tank: A unique triangular tracked machine that can continuously turn over and advance across extremely rough terrains.

8. Three-Wheel Robot: The fastest wheeled configuration in the kit, optimized for high-speed automated line-following challenges.

9. Spider Robot: A four-legged mechanical quadruped that mimics realistic bug walking patterns powered by dual core motors.

10. Detection Tank: A flexible tank chassis utilizing heavy treads to crawl over small debris, rubble, and structural steps.

11. Ball Launcher Robot: Pre-set mechanical design focused on angle launches and kinematics projectile tracking.

12. Line-Following Rover: Standard automated sorting form using double-way tracking lines.

Key Performance Highlights & Features

• 12-in-1 Multi-Form Adaptation Metamorphosis: Drastically cuts lab infrastructure procurement overheads. Rather than buying separate single-purpose kits, a school can use this 450-piece system to build 12 distinct machine setupsmoving instantly from bipedal gait physics to tracked forklift logistics and dual-wheel inverted self-balancing configurations.

• Upgraded Replaceable-MCU Mainboard Core: Built on the modular ELF educational mainboard. Instructors can easily pull out the standard ATmega328P microchip block and snap in an advanced, dual-core ESP32 or AIOT computational module, keeping the kit forward-compatible with advanced wireless IoT or edge-vision tech updates.

• Foolproof RJ11 Easy-Wiring Eco System: Eliminates loose, confusing jumper loops or accidental component burnouts caused by inverted pins. External modules click into place using telephone-style polarized RJ11 cables, establishing rock-solid data connections in seconds so students can focus purely on debugging logic.

• Massive 10-Channel Motor Drive Architecture: The ELF motherboard boasts a heavy-duty current delivery grid supporting up to 10 separate motor output channels (M1 to M10). This allows developers to design complex custom creations that can run multiple stepper motors, absolute encoder motors, and heavy DC gearboxes simultaneously.

• Comprehensive 16-Hour Academic Coursework: Supported by a professional, multi-chapter textbook structure delivering over 16 hours of structured laboratory content. This provides schools and tech training centers with an out-of-the-box curriculum layout that seamlessly guides students from block coding parameters to professional text-based code blocks in the Arduino IDE.

Frequently Asked Questions (FAQs)

Q1: Does this kit include the software licensing out-of-the-box, or is a recurring subscription required?

A: The WeeeCode programming platform (built on Scratch 3.0 visual block layouts) and the official open-source Arduino IDE are 100% free with no hidden recurring subscription fees. Software updates, driver sets, and basic code libraries can be downloaded freely by any student or teacher.

Q2: Can we expand this setup using standard electronics from other maker catalog lines?

A: Yes, easily. The ELF motherboard provides 6 versatile pin conversion expansion ports beside its standard RJ11 slots. This enables advanced engineering groups to hook up standard 3-pin or 4-pin electronic sensors, servos, and custom actuators from the broader REES52 catalog using basic jumper conversions.

Q3: Are the structural metal bars prone to bending or stripping threads during frequent competition use?

A: Not at all. Every heavy-duty structural spine element, beam, bracket, and gear in the RobotStorm kit is precision CNC-machined from thick, premium aircraft-grade aluminum alloy with an anti-corrosive anodized layer. Thread boundaries are reinforced to handle heavy tightening torques during high-impact structural assemblies.

Explore 12 Unique Robotic Experiences

With 12 distinctive robot models possible, the WeeeBot RobotStorm kit empowers learners to explore a variety of mechanisms and functions, from line-following vehicles to obstacle-avoiding bots. The kit's modular design allows parts to be easily interchanged, providing endless hours of creativity and collaborative experimentation for budding engineers and robotics enthusiasts.


Intuitive Programming for All Skill Levels

Programming your robot is accessible and engaging, thanks to the support for Blockly's drag-and-drop interface for beginners, as well as Python and Arduino IDE for more advanced users. Cross-platform compatibility ensures smooth setup on Windows, Mac, Android, and iOS devices, making the kit a perfect choice for classrooms, workshops, and home STEM projects.


Comprehensive Learning and Expansion Capability

The WeeeBot RobotStorm is equipped with multiple sensors, Bluetooth connectivity, and four RJ25 expansion ports, allowing users to expand projects with additional modules. Detailed guides and online tutorials are included, supporting teachers and students through each project while conforming to STEAM educational standards.
