Raspberry Pi Compute Module 4 IO Board CM4 I/O Board Expansion Board for Raspberry Pi CM4 I/O Expansion Board for Compute Module 4

Price 2762.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Raspberry Pi Compute Module 4 IO Board CM4 I/O Board Expansion Board for Raspberry Pi CM4 I/O Expansion Board for Compute Module 4 Specification

Power Supply
External

Power Source
Electricity

Usage
Suitable for Industrial Automation and Control Systems

IP Rating
Not waterproof

Rated Voltage
3.3V Volt (V)

Supply Voltage
5V-12V DC Volt (v)

Size
3.6um x 3.6um

Dimension (L*W*H)
3.5 x 6.5 x 0.9 cm Centimeter (cm)

Color
Black with green

Warranty
1 Year

Raspberry Pi Compute Module 4 IO Board CM4 I/O Board Expansion Board for Raspberry Pi CM4 I/O Expansion Board for Compute Module 4 Trade Information

Minimum Order Quantity
1 Piece

FOB Port
RASPBERRY PI

Payment Terms
Others

Supply Ability
100 Pieces Per Week

Delivery Time
2 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
1 x Raspberry Pi Compute Module 4 IO Board CM4 I/O Board Expansion Board for Raspberry Pi CM4 I/O Expansion Board for Compute Module 4

Main Domestic Market
All India

Certifications
ISO , MSME

About Raspberry Pi Compute Module 4 IO Board CM4 I/O Board Expansion Board for Raspberry Pi CM4 I/O Expansion Board for Compute Module 4

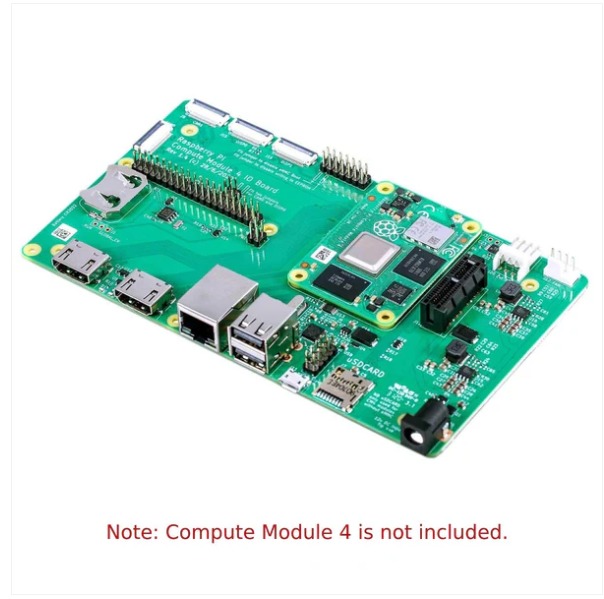

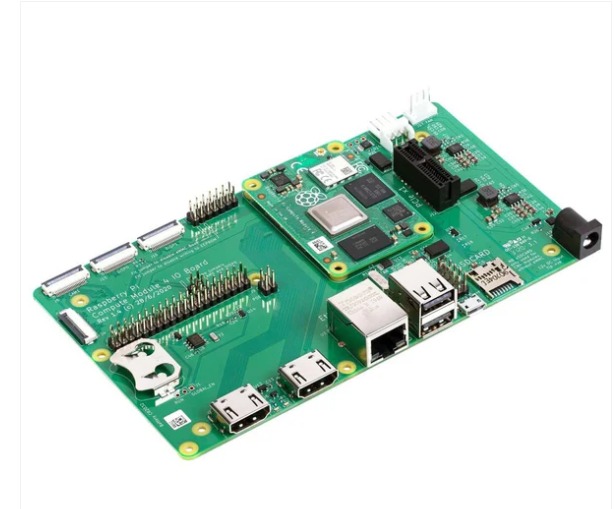

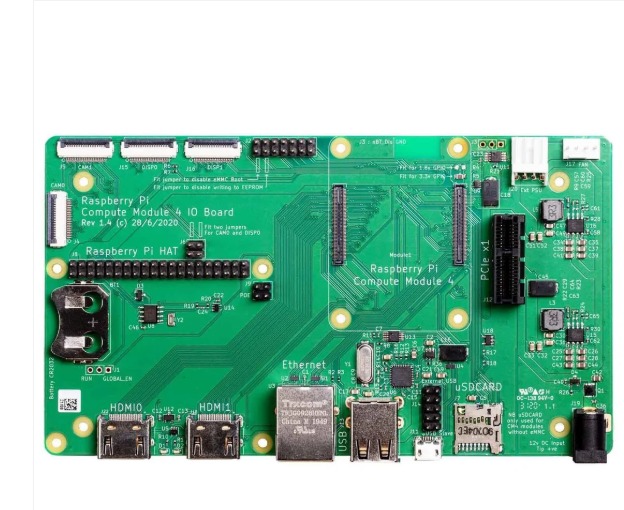

The Compute Module 4 IO Board is a companion board for Raspberry Pi Compute Module 4 (supplied separately). It is designed for use both as a development system for Compute Module 4 and as an embedded board integrated into end products.

The IO board allows you to quickly create systems using off-the-shelf parts such as HATs and PCIe cards, which might include NVMe, SATA, networking, or USB. The major user connectors are located along one side to make enclosures simple.

The Compute Module 4 IO Board also provides an excellent way to prototype systems using Compute Module 4.

Suitable for Industrial Applications

Engineered for seamless use in industrial automation and control systems, the Raspberry Pi Compute Module 4 IO Board delivers robust performance and adaptability. Its compatibility with the CM4 module ensures high reliability, making it a solid choice where stable operation is essential. The board's compact size allows for flexible integration into control panels or equipment without sacrificing valuable space.

Flexible Power Options & Easy Integration

Operating efficiently within a 5V to 12V DC power supply range, this expansion board adapts to different industrial power environments. The standardized 3.3V rated voltage makes system integration straightforward. Designed for quick setup, its external power support and clear connection points simplify both initial installation and future upgrades.

FAQ's of Raspberry Pi Compute Module 4 IO Board CM4 I/O Board Expansion Board for Raspberry Pi CM4 I/O Expansion Board for Compute Module 4:

Q: How do I connect the Compute Module 4 to the IO Board?

A: Just align the Compute Module 4 and firmly insert it into the corresponding socket on the IO Board. Secure the module and connect your external power (5V-12V DC) before proceeding to attach any peripherals as needed for your application.

Q: What types of industrial systems can benefit from using this IO Board?

A: This IO Board is particularly advantageous for industrial automation and control systems where reliable hardware integration, flexible power support, and compact design are needed. Typical uses include machinery control, sensors, monitoring solutions, and embedded system platforms.

Q: When should I consider using an external power supply, and what specifications are supported?

A: You should connect an external power source whenever the attached peripherals or the Compute Module have higher current demands. The IO Board supports a supply voltage in the range of 5V to 12V DC for optimal and safe performance.

Q: Where is this product available and who can purchase it?

A: This IO Board is distributed, exported, imported, and supplied by manufacturers and traders throughout India. It is available to industrial clients, resellers, and businesses through dedicated suppliers and wholesalers.

Q: What is the process for integrating the IO Board into an industrial system?

A: Begin by mounting the IO Board in your control system enclosure, connect the Compute Module 4, and supply the required voltage. Then, wire all necessary external interfaces, such as sensors and output controls, as per your system design. Finalize installation by configuring the software or firmware as needed.

Q: What warranty and support are offered with this board?

A: It comes with a standard 1-year warranty covering manufacturing defects. Support is available through distributors and suppliers, assuring reliable after-sales assistance for installation and operation queries.
