Nano R3 with CH340 Arduino Nano Compatible Nano Board Mini-USB Port (Unsoldered)

Price 200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Nano R3 with CH340 Arduino Nano Compatible Nano Board Mini-USB Port (Unsoldered) Specification

Silkscreen
Blue

Power Rating
3.3 kW

Base Material
Alumunium

Color
Blue

Rated Voltage
220 Volt (V)

Warranty
1 Year

Frequency
50 Hertz (HZ)

Material
Plastic

Nano R3 with CH340 Arduino Nano Compatible Nano Board Mini-USB Port (Unsoldered) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Delivery Point (DP)

Supply Ability
1000 Pieces Per Day

Delivery Time
3 Days

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia

About Nano R3 with CH340 Arduino Nano Compatible Nano Board Mini-USB Port (Unsoldered)

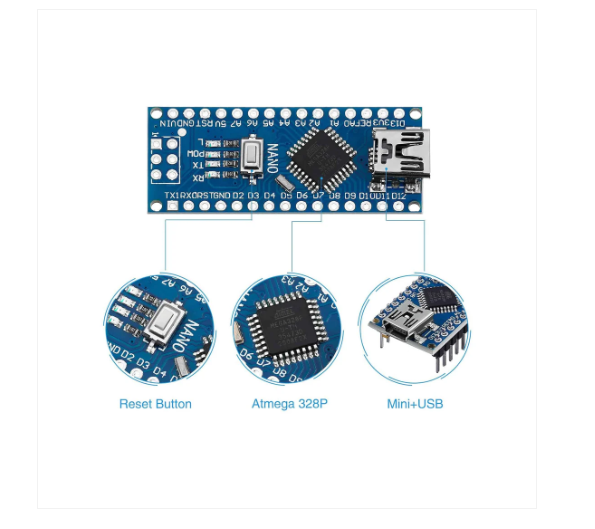

This compact Nano R3 board, based on the Arduino platform and featuring the CH340 chip, offers the functionality of an Uno in a smaller form factor. Ideal for space-constrained projects, it uses a cost-effective Mini-USB connection and ATmega328 microcontroller. This breadboard-friendly board is a budget-friendly alternative to the FTDI-equipped Nano.

The Nano board accepts a wide range of power inputs: 5V via Mini-USB or regulated supply, and 6-20V unregulated. Automatic voltage selection ensures stable operation from the highest available source.

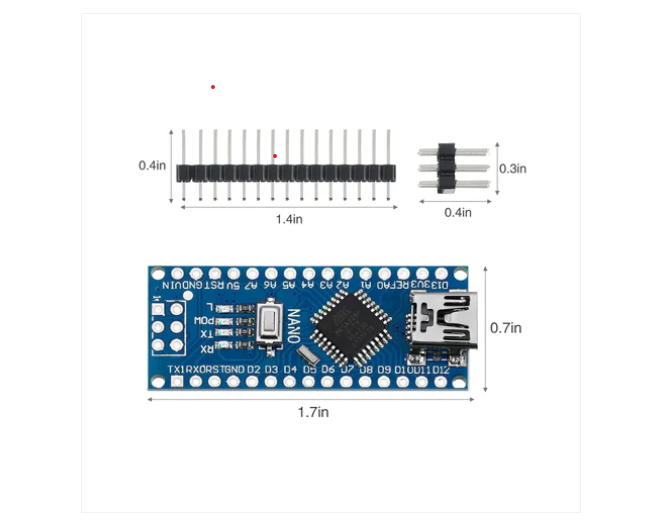

The compact Nano V3.0 (CH340) measures just 43x18mm, offering 14 digital I/O (6 PWM), 8 analog inputs, 16MHz clock speed, and 32kB flash memory.

Compact Design for Flexible Projects

The Nano R3 CH340 Arduino-compatible board stands out for its small footprint and unsoldered configuration, making it an excellent choice for tight project enclosures and custom installations. Its blue silkscreen aids easy identification and adds aesthetic value, while the Mini-USB port ensures reliable data and power connections.

Versatile Power and Reliable Materials

Operating safely at a rated voltage of 220V and 50 Hz frequency, this board delivers stability with a commendable 3.3 kW power rating. The use of sturdy plastic and an aluminum base material enhances durability, making it resilient for long-term applications in varied environments.

FAQ's of Nano R3 with CH340 Arduino Nano Compatible Nano Board Mini-USB Port (Unsoldered):

Q: How do I use the Nano R3 with CH340 Arduino Nano Compatible Board in my projects?

A: To use the Nano R3 CH340, first solder the necessary headers or components, then connect it via the Mini-USB port to your computer. Install the CH340 drivers and use the Arduino IDE to upload sketches, just like with original Arduino Nano boards.

Q: What are the primary benefits of choosing this Nano Board?

A: Key advantages include affordability, compatibility with Arduino projects, robust construction using plastic and aluminum materials, and a compact design. The board is also backed by a one-year warranty, providing peace of mind for long-term use.

Q: When should I select this model over other development boards?

A: Choose this Nano R3 board for projects that demand small dimensions, compatibility with Arduino IDE, or require customization of soldered connections. Its power rating and voltage support make it suitable for a broad range of applications.

Q: Where can I purchase this Nano R3 board in India?

A: This product is available through various channels in India, including distributors, exporters, importers, manufacturers, suppliers, traders, and wholesalers. You can find it at electronics stores, online marketplaces, or directly from official dealers.

Q: What is the process for setting up the Nano R3 with CH340 for programming?

A: Begin by installing the necessary CH340 driver on your computer. Connect the board via Mini-USB, launch the Arduino IDE, select 'Arduino Nano' as your board, and choose the correct COM port. You can then upload sketches as you would with other Arduino boards.

Q: What warranty and support are offered with this board?

A: The Nano R3 with CH340 comes with a comprehensive one-year warranty, covering manufacturing defects and ensuring reliable post-purchase support through authorized sellers in India.
