Pro Micro Atmega32U4 Development Board 5V 16M Mini Development Board Pro Micro 5V 16M Mini Leonardo Microcontroller Development Board For Arduino

Price 405.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pro Micro Atmega32U4 Development Board 5V 16M Mini Development Board Pro Micro 5V 16M Mini Leonardo Microcontroller Development Board For Arduino Specification

Silkscreen
White

Voltage Endurance
50V DC

Min. Line Width
0.15 mm

Min. Line Spacing
0.15 mm

Insulation Resistance
>500 M

Impedance
No Controlled Impedance

Soldermask
Blue

Hole Size
0.8 mm

Flame Resistance Level
94V-0

Board Type
FR-4 PCB Board

Test
E-Tested

Product Type
Pro Micro Atmega32U4 Development Board

Base Material
FR-4 Epoxy Glass

Surface Finish
HASL (Hot Air Solder Leveling)

Copper Thickness
1 oz

Board Thickness
1.6 mm

Color
Blue

Panel Size
33mm x 18mm

Sensor Switch
No

Electrical Components
ATmega32U4 Microcontroller, USB Micro Port, Voltage Regulator

Number Of Layers
2 Layers

Analog Input Channels
4

EEPROM
1 KB

SRAM
2.5 KB

Microcontroller
ATmega32U4

Communication Interface
UART, SPI, I2C, USB

Dimensions
33mm x 18mm x 2mm

USB Connector Type
Micro USB

Weight
5g (approx.)

Compatible With
Arduino IDE, Arduino Leonardo

Clock Speed
16 MHz

PWM Channels
5

Digital I/O Pins
14 (of which 5 provide PWM output)

Flash Memory
32 KB (4 KB used by bootloader)

Operating Voltage
5V

Pro Micro Atmega32U4 Development Board 5V 16M Mini Development Board Pro Micro 5V 16M Mini Leonardo Microcontroller Development Board For Arduino Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Others

Supply Ability
100 Pieces Per Week

Delivery Time
2 Days

Sample Available
Yes

Sample Policy
Free samples available with shipping and taxes paid by the buyer

Packaging Details
1 x Pro Micro Atmega32U4 Development Board 5V 16M Mini Development Board Pro Micro 5V 16M Mini Leonardo Microcontroller Development Board For Arduino

Main Domestic Market
All India

Certifications
trademark, all ISO , MSME

About Pro Micro Atmega32U4 Development Board 5V 16M Mini Development Board Pro Micro 5V 16M Mini Leonardo Microcontroller Development Board For Arduino

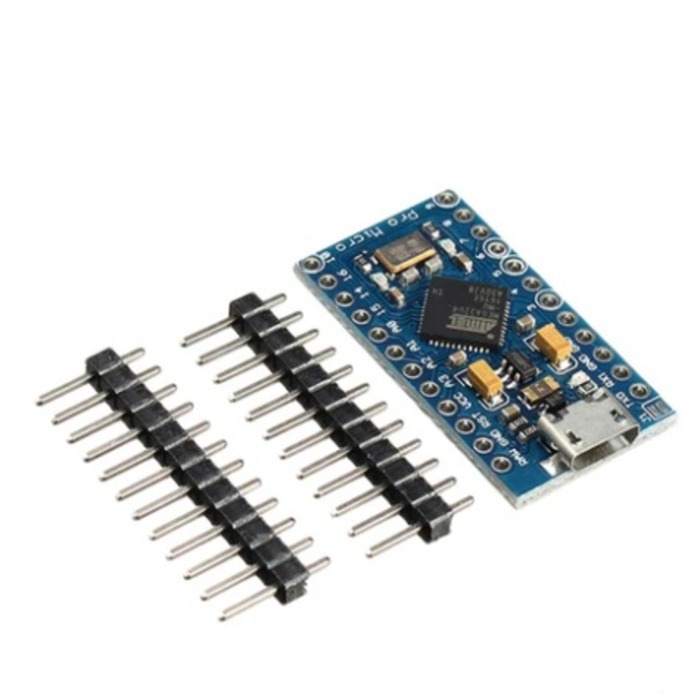

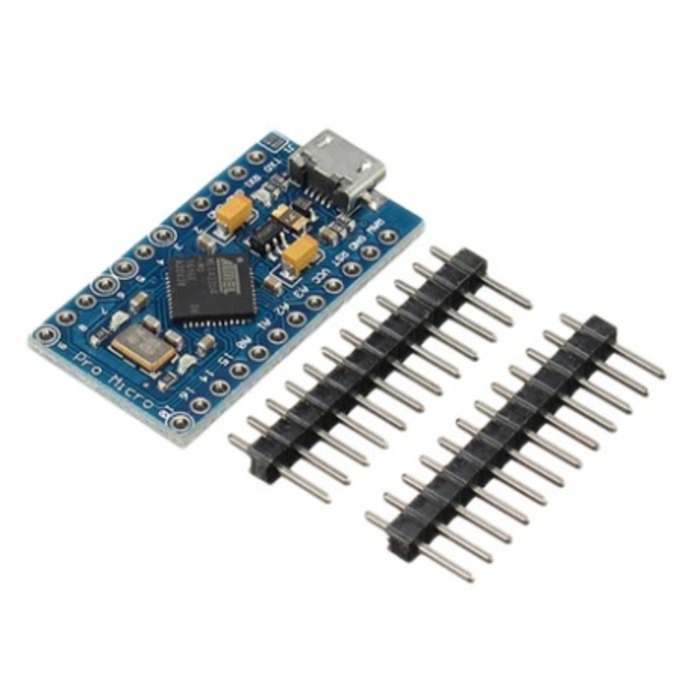

The Pro Micro Atmega32U4 Development Board is similar to the Pro Mini except with an ATmega32U4 on board. The USB transceiver inside the 32U4 allows us to add USB connectivity on board and do away with a bulky external USB interface. This tiny 5V 16M mini Development Board tiny little board does all of the neat ARDUINO tricks that you're familiar with 4 channels of 10-bit ADC, 5 PWM pins, 12 Dios as well as hardware serial connections Rx and Tx. Running at 16MHz and 5V, this board will remind you a lot of your other favourite ARDUINO-compatible boards but this little guy can go just about anywhere. If you're supplying unregulated power to the board, be sure to connect to the "RAW" pin, not VCC. This Pro Micro Atmega32U4 Development Board's latest revision corrects the silk error from the last version of the board so that pin 14 is correctly labelled. We've also added a PTC fuse and diode protection to the power circuit and corrected the RX and TX LED circuits.

Compact Design Meets Robust Functionality

Despite its small size (33mm x 18mm), the Pro Micro Atmega32U4 delivers powerful performance suitable for wearables, sensing projects, and rapid prototyping. With integrated USB Micro, 16MHz clock speed, and multiple communication interfaces, it fits specialized and general Arduino applications alike.

Wide Compatibility and Ease of Use

Fully compatible with the Arduino IDE and supporting the Leonardo board architecture, this development board simplifies programming and device interaction. Plug-and-play via Micro USB enables easy firmware uploads and real-time debugging for beginners and professionals.

Quality Assured Construction

Featuring FR-4 epoxy glass, HASL finishing, and stringent E-testing, the board assures high reliability, flame resistance (94V-0), and excellent insulation. The blue solder mask adds durability and easy identification during hardware assembly.

FAQ's of Pro Micro Atmega32U4 Development Board 5V 16M Mini Development Board Pro Micro 5V 16M Mini Leonardo Microcontroller Development Board For Arduino:

Q: How do I program the Pro Micro Atmega32U4 Development Board?

A: You can program the board using the Arduino IDE. Connect it to your computer via a Micro USB cable, select 'Arduino Leonardo' as the board type, and upload your code directly, thanks to the ATmega32U4's native USB interface.

Q: What are the main advantages of using the ATmega32U4 microcontroller?

A: The ATmega32U4 provides built-in USB communication, eliminating the need for a separate USB-to-serial converter. This enables features like keyboard or mouse emulation and simplifies connection to your computer for data transfer and programming.

Q: When should I use this board instead of a standard Arduino Uno?

A: Choose the Pro Micro if you need a smaller form factor, onboard USB emulation, or when size and weight are critical, such as in wearables or compact embedded systems. It's also ideal for keyboard and custom HID projects.

Q: Where can I use the Pro Micro Atmega32U4 Development Board?

A: The board is suitable for various applications, including robotics, sensors, wearables, and custom USB devices. Its versatile connectivity supports both standalone and integrated embedded projects.

Q: What is the process for connecting peripherals to the board?

A: Utilize the 14 digital I/O pins (5 with PWM) and 4 analog input channels for sensors, actuators, and other hardware. Communication with external modules is possible via UART, SPI, I2C, and USB interfaces by wiring peripherals to the appropriate pins.

Q: What are the benefits of the E-tested, FR-4 construction?

A: E-testing ensures each board meets electrical standards for performance. The FR-4 epoxy glass material provides robust mechanical strength, high insulation resistance, and enhanced flame resistance, making the board durable and dependable.
