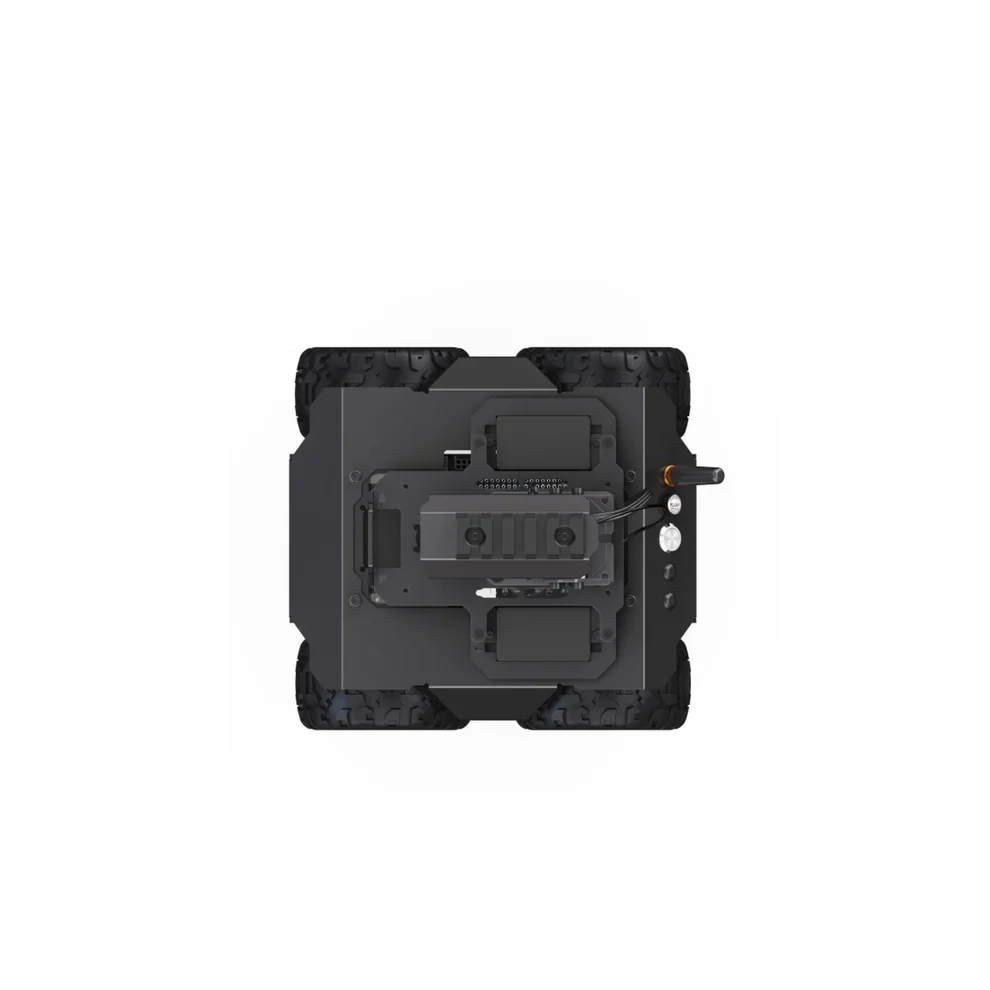

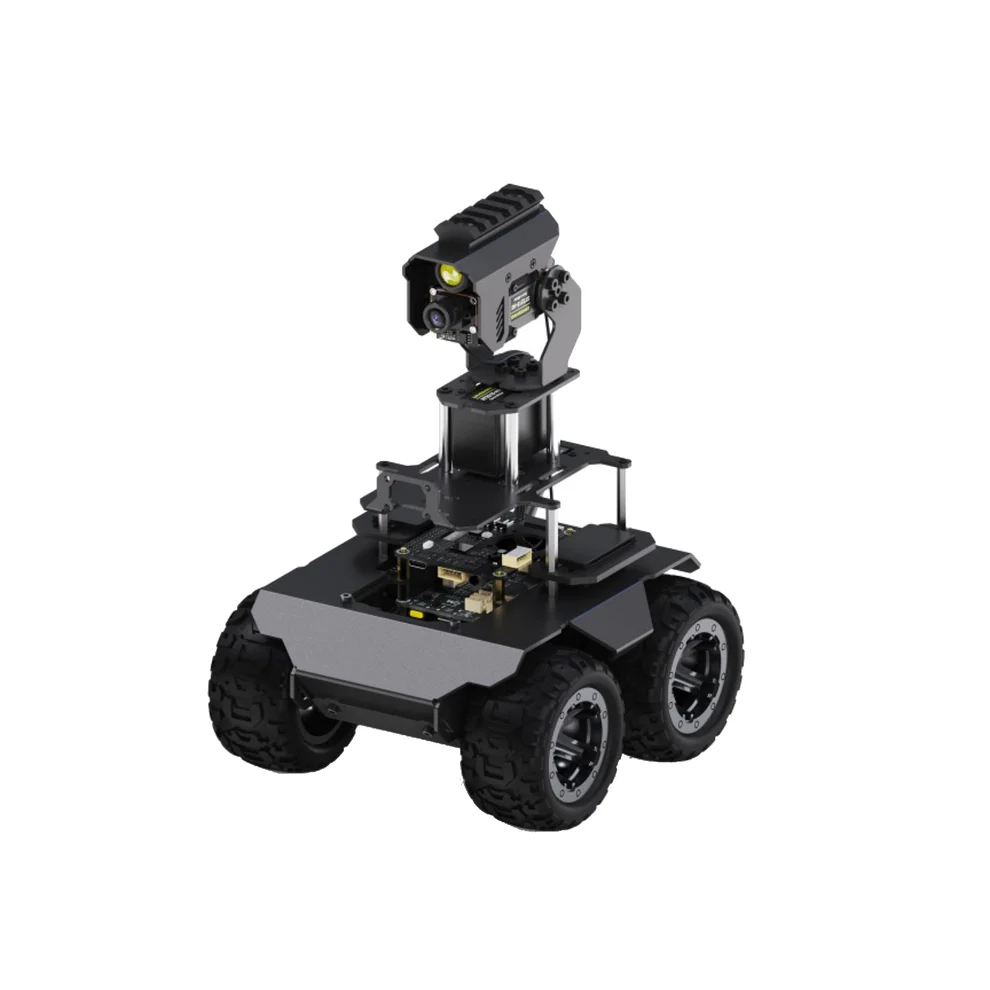

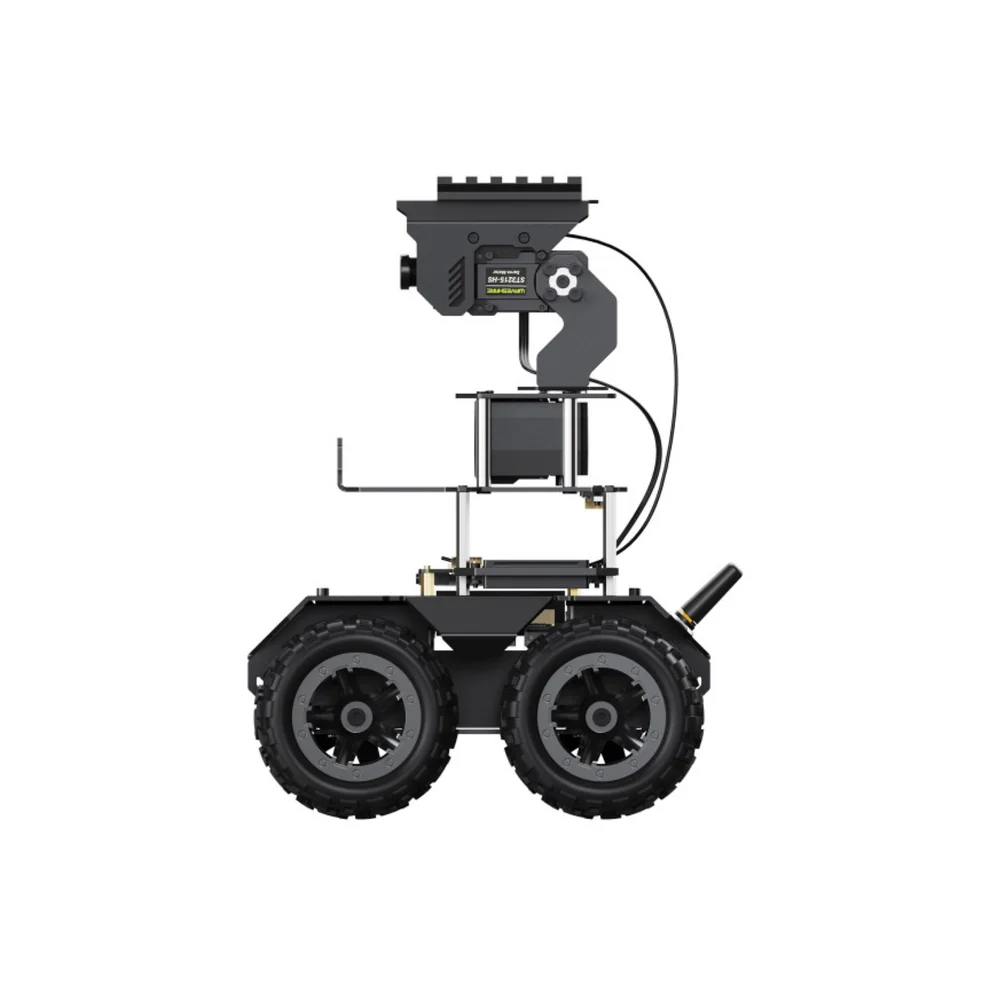

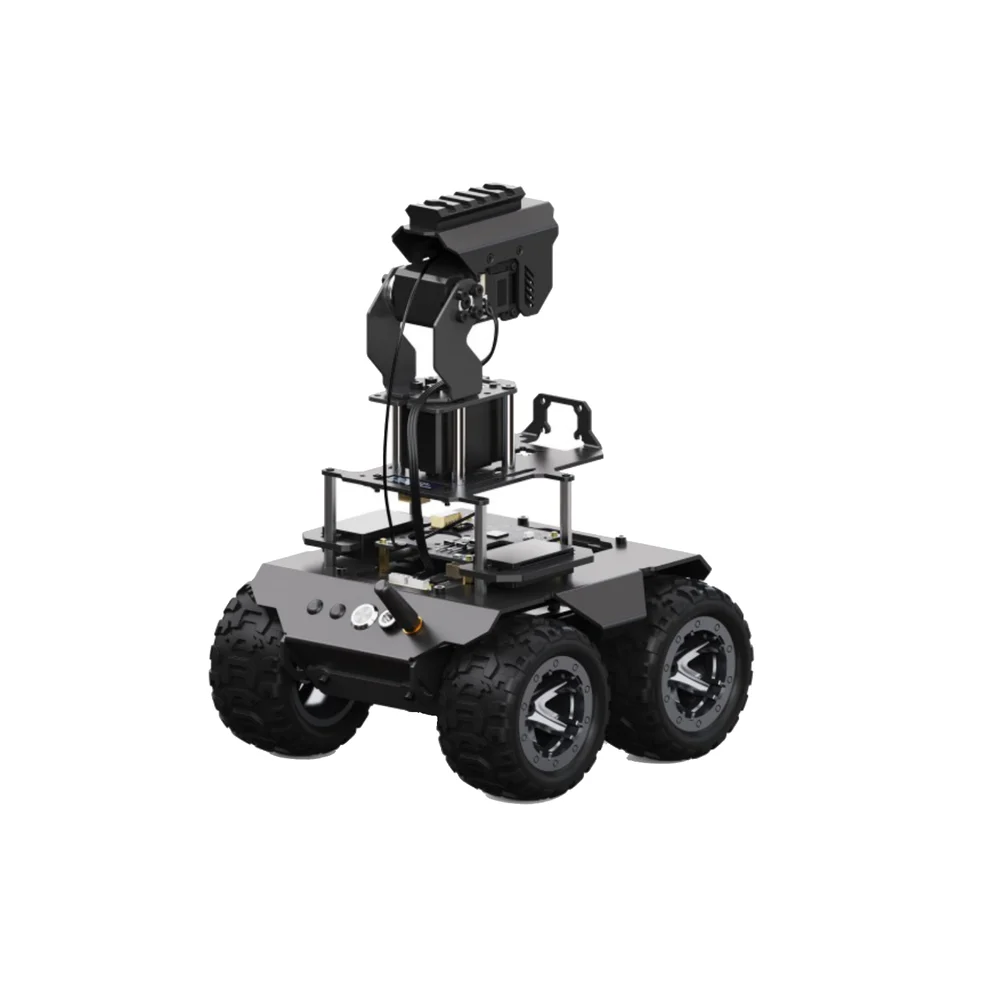

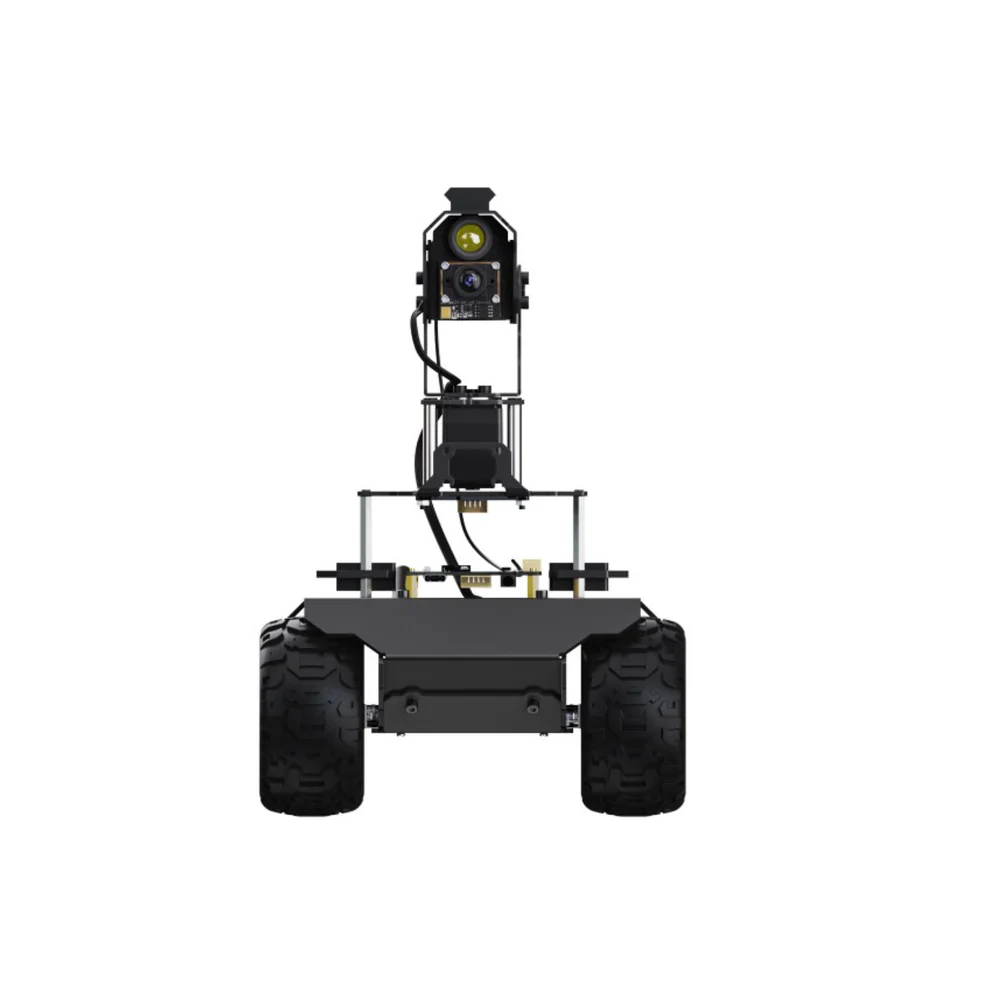

Waveshare RaspRover: AI-Powered 4WD Robot With Computer Vision, In-Build Pan-Tilt Module Suitable for Raspberry Pi 4B / Raspberry Pi 5

About Waveshare RaspRover: AI-Powered 4WD Robot With Computer Vision, In-Build Pan-Tilt Module Suitable for Raspberry Pi 4B / Raspberry Pi 5

Description

The Waveshare RaspRover 4WD AI Robot distributed by REES52 is a professional-grade, open-source four-wheel-drive mobile robot chassis engineered for advanced computer vision, autonomous navigation, and ROS2 research. Featuring a high-efficiency dual-controller architecture, the platform pairs a high-level host controller (supporting Raspberry Pi 4B or Raspberry Pi 5) for complex AI vision and strategy planning, with an on-board ESP32 sub-controller that handles real-time PID motor loops, hardware interrupts, and low-level sensor feedback. Constructed with a rugged 2mm thick all-aluminum metal body and high-grip 80mm rubber tires driven by four N20 encoder motors, this robot reaches speeds up to 0.65m/s under closed-loop speed control. Equipped with a 2-DOF high-torque pan-tilt assembly holding a 5MP $160^\circ$ ultra-wide-angle camera and an on-board 3S Lithium UPS power management system, the RaspRover offers an ideal B2B technical toolbed for smart university engineering labs, autonomous driving research setups, and Atal Tinkering Labs (ATL).

Core Package Contents (PT Version)

• 1 x Waveshare RaspRover Aluminium Chassis with Integrated Sub-Controller Baseboard

• 1 x 2-DOF Pan-Tilt Mechanical Assembly with ST3215 High-Speed Bus Servos

• 1 x 5MP $160^\circ$ Wide-Angle Camera Module Array

• 1 x High-Brightness LED Spotlight Assembly (Mounted to Pan-Tilt deck)

• 1 x 12.6V 2A Smart Battery Wall Balance Charger Adapter

• 1 x 2.4GHz Wireless Gamepad Remote Control Receiver Kit

• 3 x Color Calibration Targets (Green, Red, Blue Solid Tracking Plastic Balls)

• 1 x Roll of Yellow Autonomous Lane Mapping Road Tape

• 1 x Premium Hex Wrench Assembly Handtool & Precision Structural Screw Fastener Package

Key Performance Highlights & Features

• Advanced Multi-Controller Balance: By delegating real-time motor PID loops, 9-axis IMU raw data acquisition, and OLED status readouts to an onboard ESP32 sub-controller, the platform saves precious CPU cycles and IO lines on your Raspberry Pi host computer, reserving its full processing power for heavy computer vision tasks.

• OpenCV Computer Vision Out-of-the-Box: Comes pre-configured with Flask and Python backend codebases that work seamlessly with OpenCV. This allows developers to instantly jump into face detection, automatic multi-color object tracking, gesture-based interactions, and motion-detection routines.

• Real-World Autonomous Lane Following: Includes a vision line-tracking demonstration application and high-contrast yellow path tape. This lets students map out custom paths and study real-world autonomous vehicle algorithms like edge thresholding and proportional path correction.

• Smart 3S UPS Charging Core: Built on a smart 3S lithium power grid that features onboard reverse-polarity safety LEDs to prevent damage if batteries are swapped incorrectly. It supports simultaneous charging and discharging, ensuring your code remains active during continuous testing.

Frequently Asked Questions (FAQs)

Q1: Does this kit include the core Raspberry Pi 4B or Raspberry Pi 5 processor single-board computer?

A: No, the baseline RaspRover package is delivered as an "Accessory/Kit" version that does not include the core single-board computer or batteries. You will need to install your own Raspberry Pi 4B or Raspberry Pi 5 host board, along with three standard 18650 lithium rechargeable battery cells to power the UPS module.

Q2: How do we build custom scripts or expand the robot's physical sensor footprint?

A: The RaspRover features a built-in Jupyter Lab interactive workspace, allowing developers to test custom Python scripts in real time through a standard web browser. For physical hardware expansions, the driver board exposes a standard 40-pin GPIO header alongside an integrated USB 2.0 hub, making it easy to plug in heavy-data peripherals like 360-degree LiDAR units or depth cameras.

Q3: Can this robot be controlled remotely over the internet, or does it require local Wi-Fi?

A: Out of the box, the system creates its own local Wi-Fi access point for standard direct pairing. However, because it runs on standard Web App architectures, it natively supports secure tunneling services like LocalTunnel, Ngrok, or Cpolar. This enables you to securely expose the robot's control port to the web and drive or monitor its camera feed from anywhere in the world.
