RD6006-W Digital Control Switch Adjustable Power Supply DC Stabilized Power Adapter Buck Module Monitoring Power Supply - RD6006

About RD6006-W Digital Control Switch Adjustable Power Supply DC Stabilized Power Adapter Buck Module Monitoring Power Supply - RD6006

The RD6006 Power Supply is a versatile electronic device designed to provide a stable and adjustable DC voltage and current output for various applications. The RD6006 allows users to adjust both the voltage and current output according to their specific requirements. This feature is crucial for powering a wide range of electronic devices and circuits.

The power supply is equipped with a digital display that provides real-time readings of the output voltage and current, allowing users to monitor the power parameters. It is designed to deliver precise and stable DC power, making it suitable for applications that demand accurate voltage and current levels.

The power supply offers different output modes, including constant voltage (CV) and constant current (CC), ensuring that the power supply can adapt to various load conditions. The power supply is equipped with protection mechanisms to prevent overloading and ensure the safety of connected devices.

Model: RD6006

Input voltage range: 6-70.00V

Output voltage range: 0-60.00V

Output current range: 0-6.000A

Output power range: 0-360W

Input voltage measurement resolution: 0.01V

Output voltage setting measurement resolution: 0.01V

Output current setting measurement resolution: 0.001A

Battery voltage measurement resolution: 0.01V

Input voltage measurement accuracy: (1%+5 digits)

Output voltage accuracy between setting and measurement: (0.3%+3 digits)

Output current accuracy between setting and measurement:(0.5%+5 digits)

Battery voltage measurement accuracy: (0.5%+3 digits)

Automatic cut-off current value charging:10mA

Output ripple typical:100mV VPP

Working temperature range: -10-40

External sensor Temperature detection range:-10100/0200

External sensor Temperature detection accuracy:3/

Constant voltage response time: 2msi140.1A-5A Loadi14

Constant voltage mode loadregulation: (0.1%+2 digits)

Constant current mode loadregulation: (0.1%+3 digits)

Capacity measurement range: 0-9999.99Ah

Energy measurement range: 0-9999.99Wh

Capacity and energy statistical error: 2i14

Buck working mode: Voltage drop >1V and >10%

Over temperature protection: System temperature>80

Screen brightness setting: 0-5(6 level in total)

Screen: 2.4inch color HD display

Cooling fan start condition: Output voltage>40V or Output current>4A

or System temperature>45

Cooling fan shut down condition: Output voltage<40V and Output current<3.9A

and System temperature<45

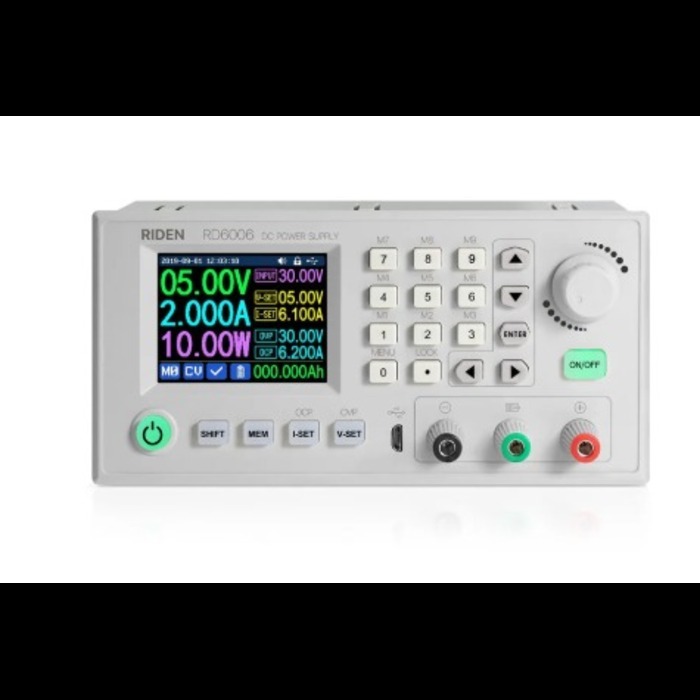

Intuitive LCD Interface and Remote Control

The RD6006-W power supply features a vibrant 2.4-inch color LCD that displays essential parameters clearly. With USB and WiFi connectivity options, users can remotely monitor and configure settings from a PC or mobile app, enhancing workflow flexibility and convenience in both laboratory and field environments.


Enhanced Safety and Versatility

Equipped with multiple protection mechanisms-over-voltage, over-current, and over-temperature-the RD6006-W ensures device and user safety. It offers 10 programmable memory presets for frequently used settings, making it highly practical for repetitive testing, prototyping, and industrial automation tasks.


Precision and Efficient Performance

Delivering up to 360W output and high regulation accuracy, this module excels in applications requiring reliable and stable DC power. Its efficiency reaches up to 90%, and fan cooling ensures stable operation under heavy loads. The compact, sturdy design makes it easy to integrate into custom setups or panel mounts.
