Holybro X500 V2 Barebones Frame Kit X500 V2 ARF (Almost Ready-to-Fly) Kit With Motor, Propellers, and ESC Build Your Custom Quadcopter For Educational Drone Project

Price 35599.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Holybro X500 V2 Barebones Frame Kit X500 V2 ARF (Almost Ready-to-Fly) Kit With Motor, Propellers, and ESC Build Your Custom Quadcopter For Educational Drone Project Specification

Input
XT60 Direct Main Battery Connection Link

Components

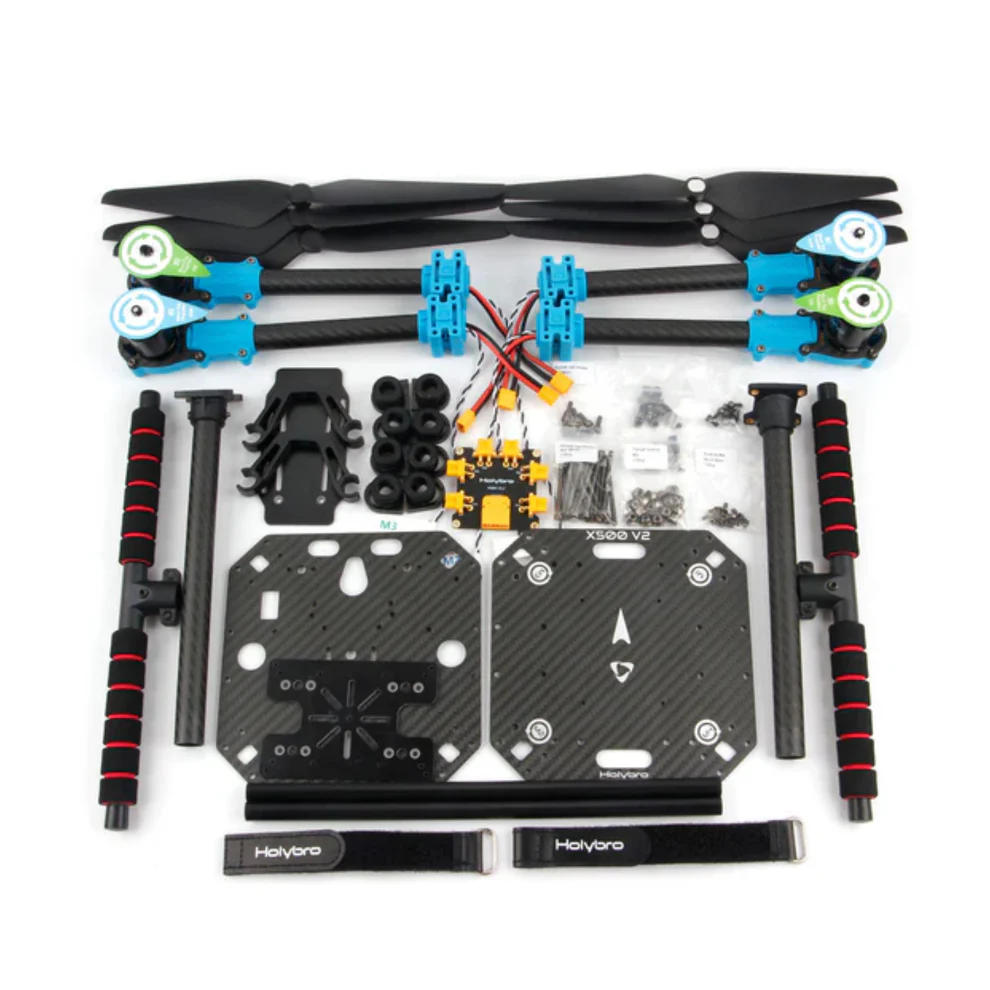

4x 2216 920KV Motors, 4x BLHeli_S 20A ESCs, 6x 1045 Props, 1x Integrated PDB

Power Supply
Direct Current (DC) System via Integrated PDB

Usage
Engineering Custom Flight Hardware with Pixhawk/Companion Computers

Power Source
External LiPo Battery Pack (Recommended: 4S 3000mAh to 5000mAh 20C+ )

Output
4 x Solderless XT30 Power Ports for ESCs, Integrated Peripherals Ports

Interface
Solderless 10-Pin IDC/PWM Headers, Plug-and-Play Power Connectors

Features
Pre-soldered Integrated PDB, Companion Deck for Raspberry Pi 4 / Jetson Nano

Operating Temperature
-10 to +50 Celsius (oC)

Power Rating
Approximately 800 Watts Total Combined Max Thrust Power

Product Type
Professional Drone Frame and Propulsion Kit

Application
Industrial Inspection, University Aerospace R&D, Mapping & Surveillance

Supply Voltage
14.8V DC (Optimized for 4S LiPo Input) Volt (v)

Size

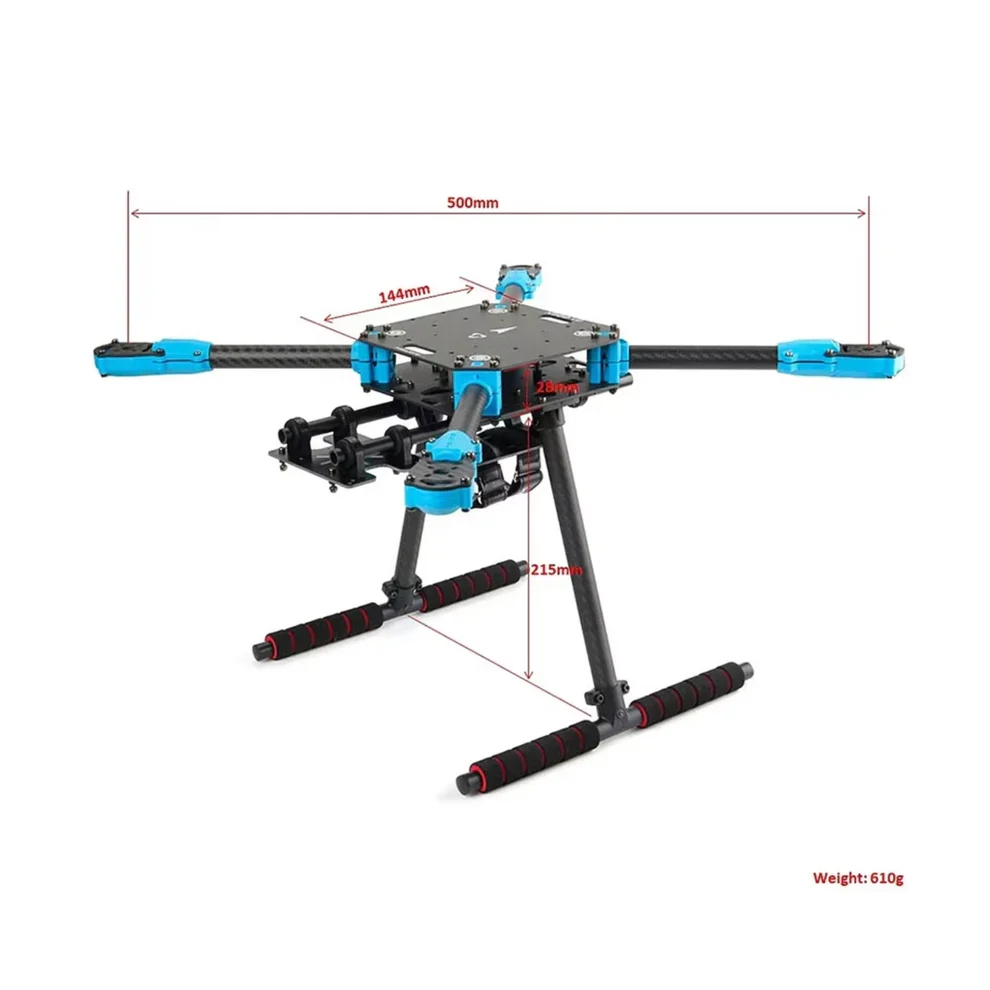

500mm Diagonal Footprint Layout

Dimension (L*W*H)
Frame Core Body: 144mm x 144mm | Landing Gear Clearance Height: 215mm Millimeter (mm)

Function
Autonomous UAV Prototyping, Aerial Vision Processing, R&D Flight Platform

Weight
1308 Grams (g)

Rated Voltage
14.8V DC Standard Volt (V)

Usage & Applications
Engineering Custom Flight Hardware with Pixhawk/Companion Computers. Industrial Inspection, University Aerospace R&D, Mapping & Surveillance.

Cable Type
Heavy-Gauge Power Leads with Pre-Assembled XT60 & XT30 Connectors

Display Type
Diagnostic LEDs via User s Choice of Connected External Flight Controller

Phase
3-Phase Brushless Output from ESC to Motors

Material
Full Carbon Fiber Twill, Reinforced Space-Grade Nylon Connectors

Frequency
400Hz to 490Hz Standard PWM / DShot600 Digital Protocol Support Hertz (HZ)

Conductor
High-Flexibility Silicone Insulated Copper Wire leads

Rated Current
20A Per Arm (80A Total Burst System Handling Capacity) Ampere (amp)

Current Rating
20A Continuous per Electronic Speed Controller (ESC)

Capacity
Payload: 1.5 Kg

Thickness
2.0 mm (Ultra-Rigid Top and Bottom Carbon Fiber Plates) Millimeter (mm)

Holybro X500 V2 Barebones Frame Kit X500 V2 ARF (Almost Ready-to-Fly) Kit With Motor, Propellers, and ESC Build Your Custom Quadcopter For Educational Drone Project Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Holybro X500 V2 Barebones Frame Kit X500 V2 ARF (Almost Ready-to-Fly) Kit With Motor, Propellers, and ESC Build Your Custom Quadcopter For Educational Drone Project

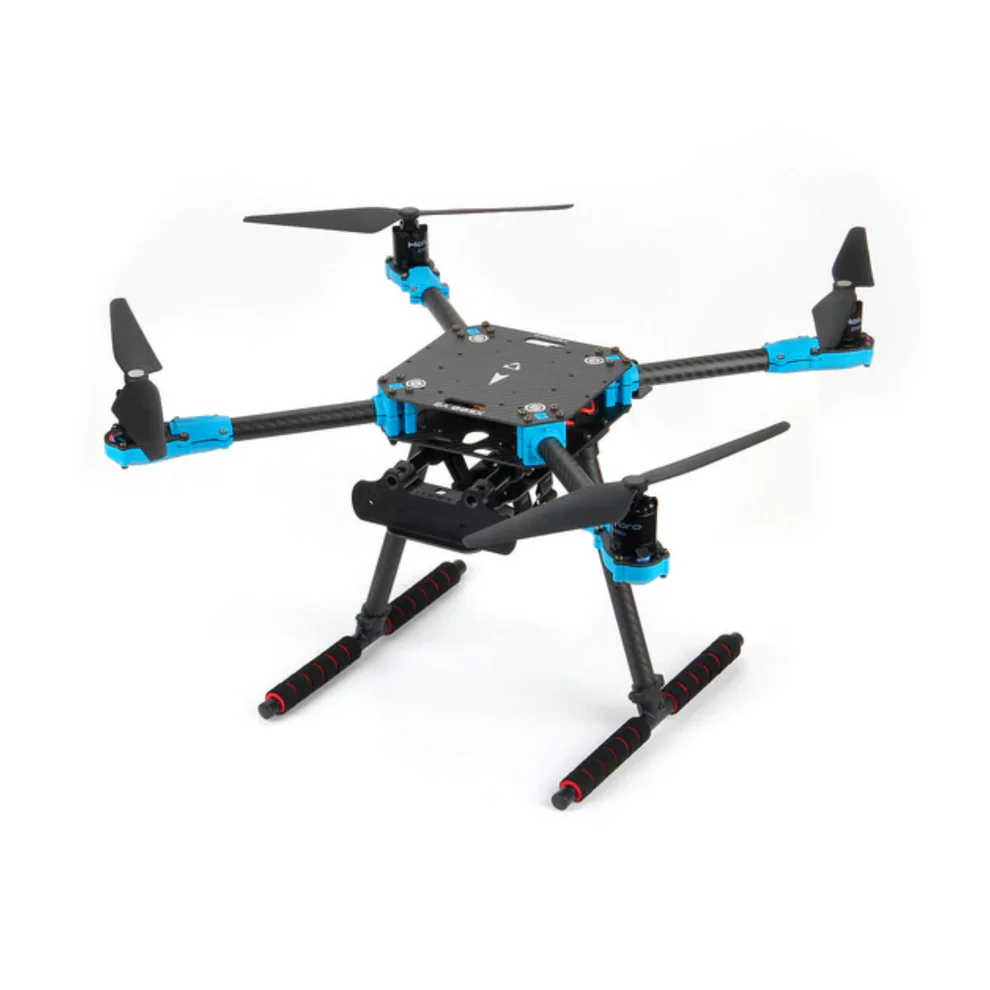

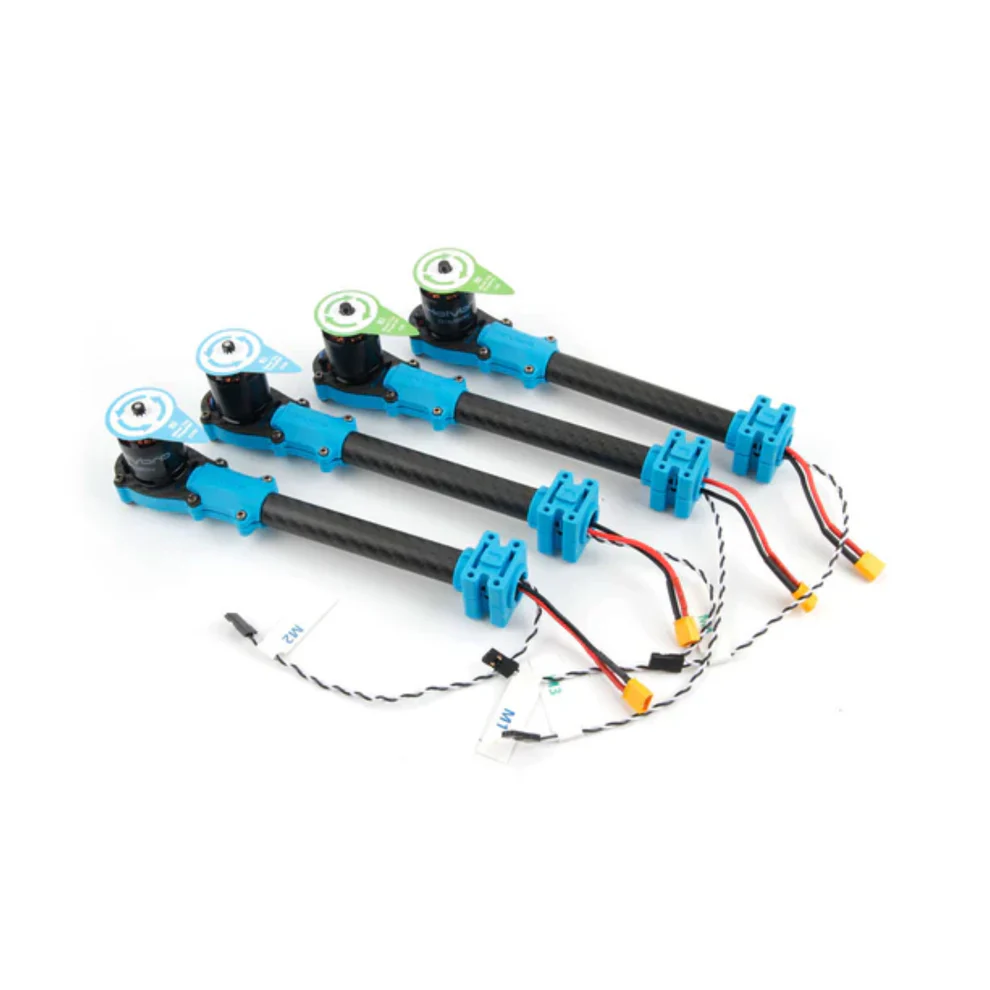

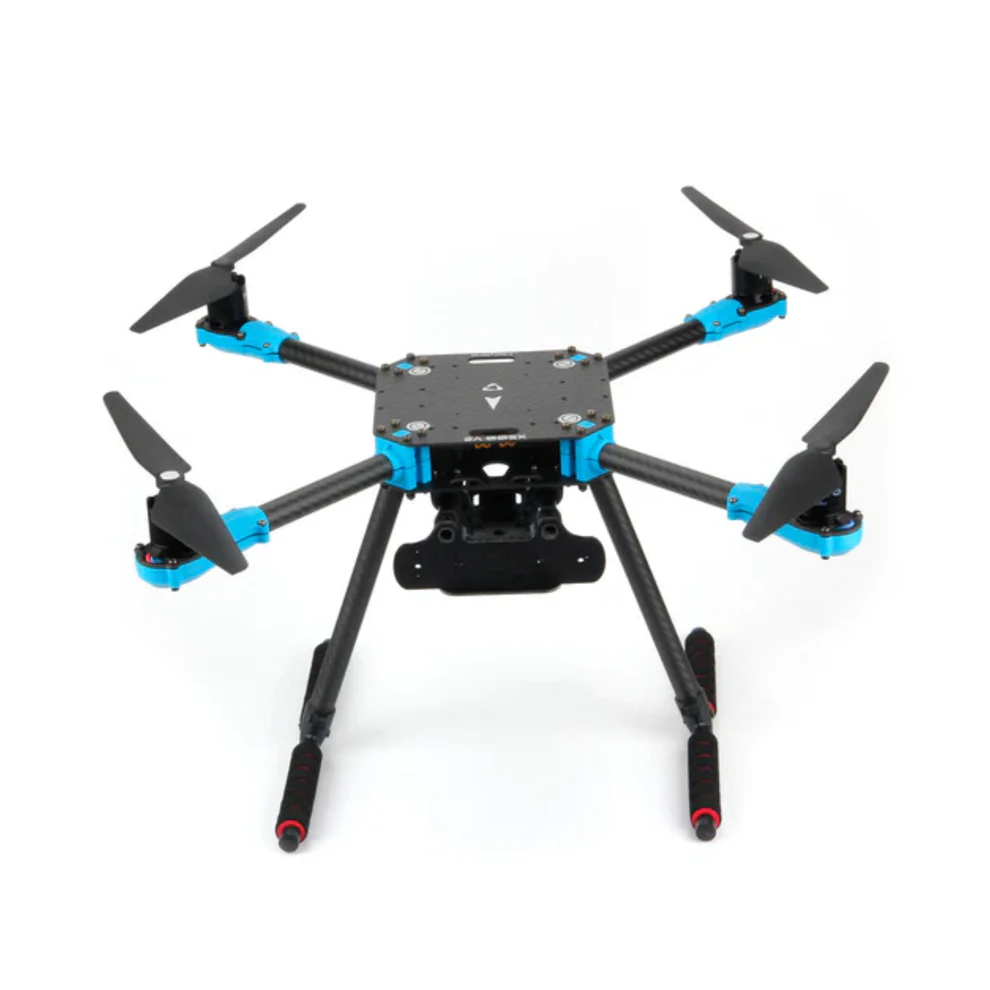

The REES52 Holybro X500 V2 Barebones (ARF) Kit is an industrial-grade, professional-class 500mm carbon fiber quadcopter development platform designed for rapid deployment. Perfect for autonomous research, aerial photography, and companion-computer testing, this Almost-Ready-to-Fly (ARF) package eliminates tedious build times by arriving with high-efficiency Holybro 2216 920KV motors, BLHeli-S 20A ESCs, and a centralized Power Distribution Board (PDB) completely pre-installed. Built using full carbon fiber twill plates and structural 16mm tube arms with fiber-reinforced nylon interlocking joints, it delivers exceptional rigidity, a solder-free assembly time under 15 minutes, and standard mounting layouts for Pixhawk series flight controllers, Raspberry Pi, and NVIDIA Jetson Nano boards.

Q1: What hardware components do I need to purchase additionally to make this drone fly?

A: Because this is an Almost-Ready-to-Fly (ARF) barebones setup, you will need to add a Flight Controller (e.g., Pixhawk 6C or 6X), a Power Module, a GPS unit, a Radio Transmitter & Receiver set (minimum 6-Channels), and a compatible 4S LiPo battery with a charger.

Q2: Does this model require any soldering during the assembly process?

A: No. The kit features a completely solder-free layout design. The ESCs and peripherals connect directly into the pre-installed Power Distribution Board (PDB) using robust XT30 structural plugs, and the main battery line uses a standard XT60 socket.

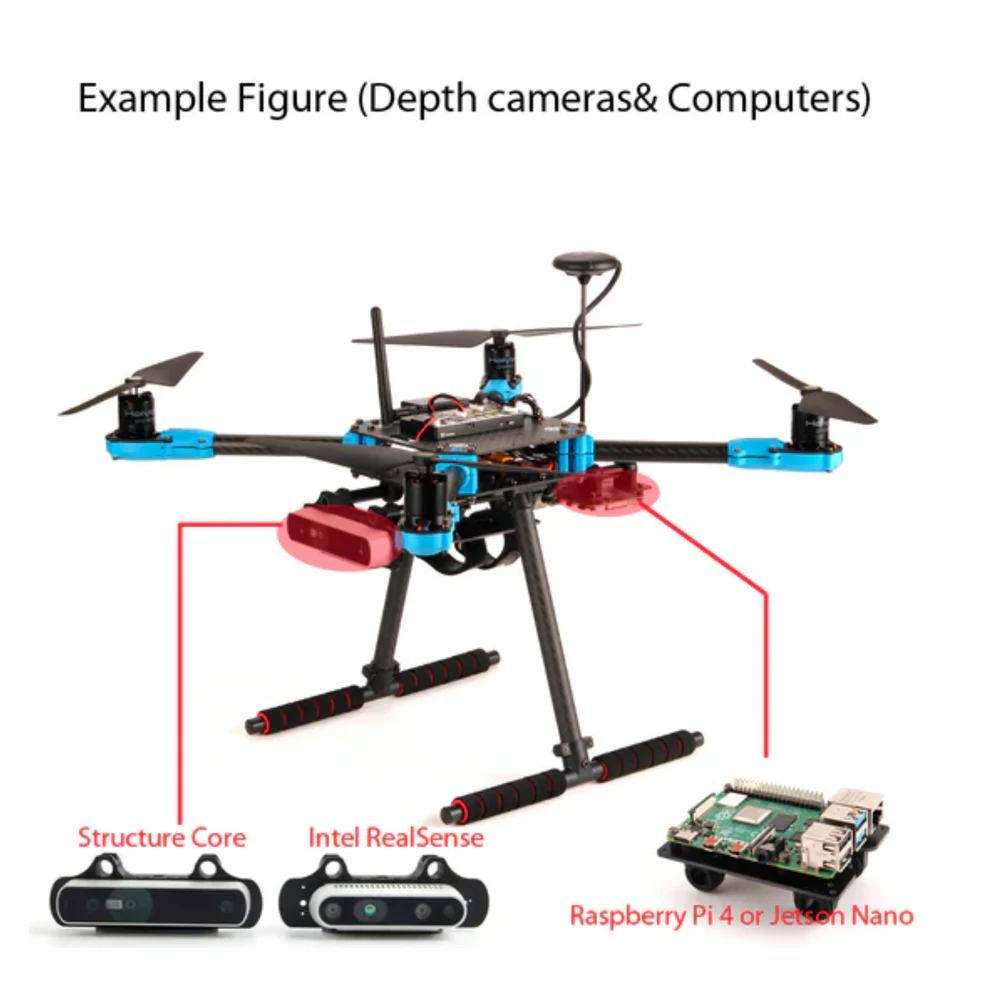

Q3: Can this drone safely handle a payload like a custom thermal camera or a companion board?

A: Yes, the system provides a payload capacity of up to 1.5 kg (1500g) over the base build at 70% throttle. The frame includes dedicated mounting grids for companion microcomputers like the Raspberry Pi 4 and NVIDIA Jetson Nano.
