About

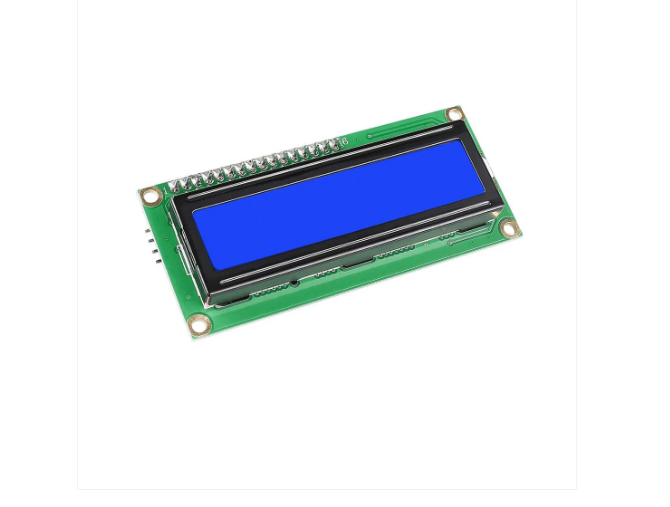

This is a 16x2 I2C LCD Display that provides a simple and cost-effective solution for adding a 162 White on Liquid Crystal Display to your project. The display is 16 characters by 2 lines display has a very clear and high-contrast white text upon a blue background/backlight.

This is the great blue backlight LCD. It is fantastic for Arduino-based projects. This 16x2 I2C LCD is very easy to interface with Arduino or Other Microcontrollers.

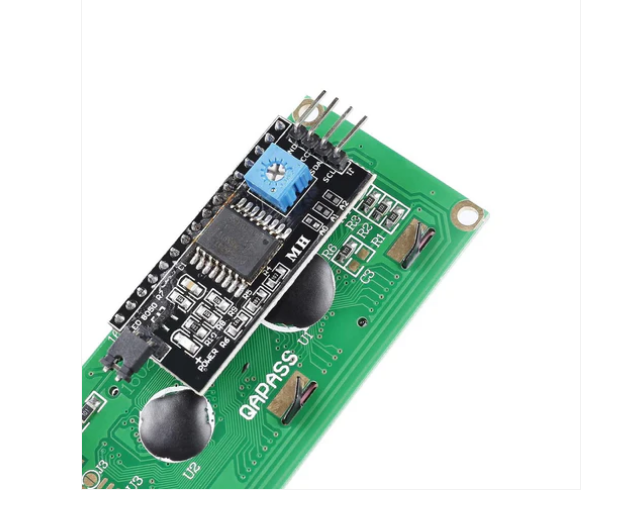

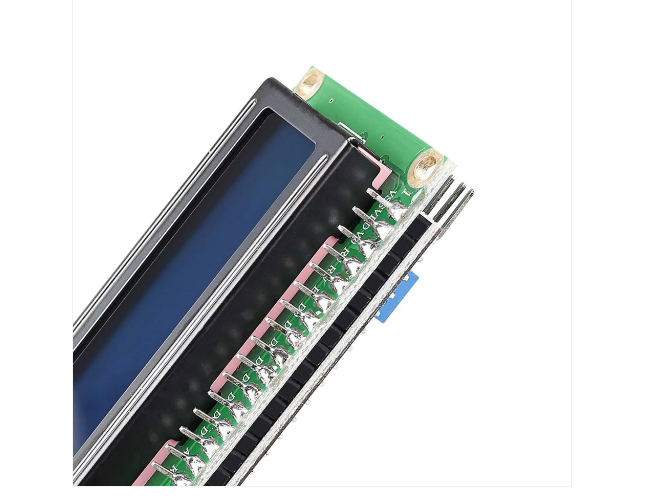

This display overcomes the drawback of a 16x2 I2C LCD Display in which youll waste about 8 Pins on your Arduino for the display to get working. Luckily in this product, an I2C adapter is directly soldered right onto the pins of the display. So all you need to connect are the I2C pins, which show a good library and little coding.

The I2C is a type of serial bus developed by Philips, which uses two bidirectional lines, called SDA (Serial Data Line) and SCL (Serial Clock Line). Both must be connected via pulled-up resistors. The usage voltages are standard as 5V and 3.3V.

If you already have the I2C adapter soldered onto the board like in this product, the wiring is quite easy. You should usually have only four pins to hook up. VCC and GND of course. The LCD works with 5 Volts. So we go for the 5V Pin.

The values shown on the display can be either simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles that the Arduino is performing.
