Arduino TinkerKit Braccio Robotic Arm Kit 6-Axis Programmable & Adjustable Arm Kit For DIY Projects, Robotics Learning, and STEM Education

About Arduino TinkerKit Braccio Robotic Arm Kit 6-Axis Programmable & Adjustable Arm Kit For DIY Projects, Robotics Learning, and STEM Education

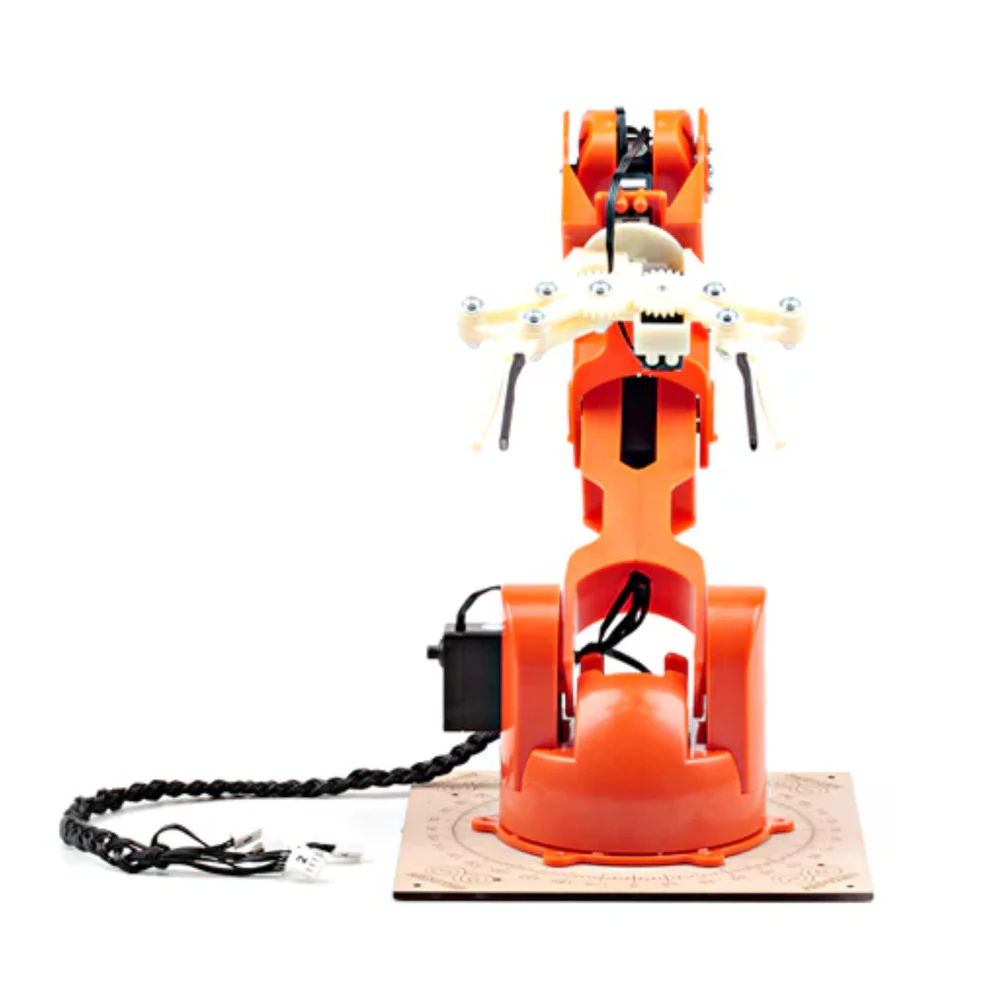

Description

The Official Arduino TinkerKit Braccio Robotic Arm Kit distributed by REES52 is a highly versatile, industrial-grade 6-axis robotic manipulator engineered for advanced mechatronics education, automated desktop simulation, and complex algorithm development. Controlled seamlessly via standard Arduino microcontrollers (such as the UNO, Mega, or Due), this physical computing kit can be constructed in multiple spatial configurations to execute real-world tasks like pick-and-place routing, tracking operations, or even anchoring lightweight solar tracking grids and vision camera payloads. Driven by six specialized dual-bearing metal-gear servo motors, the kit includes a customized Braccio Power Shield that manages current distribution safely, making it a premier B2B training platform for automated university laboratories, vocational electronics training institutions, and STEM centers.

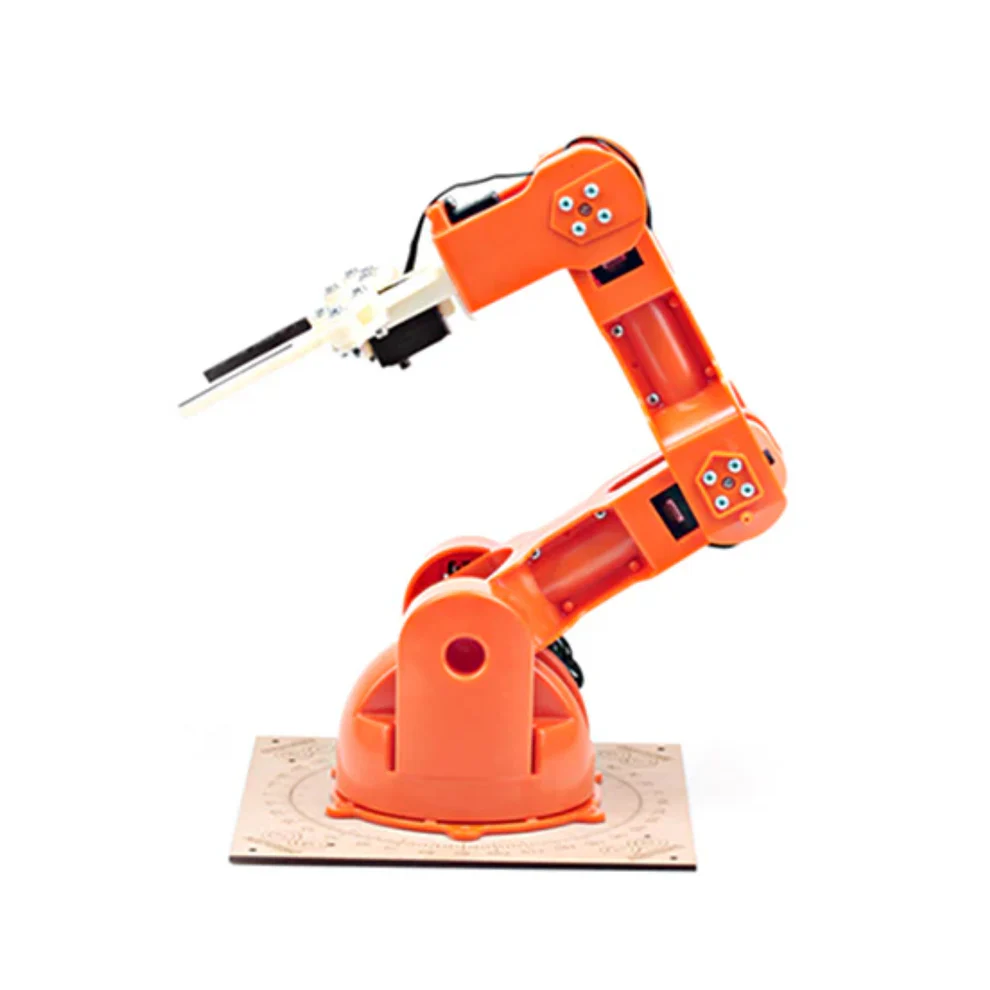

Actuator Matrix Deep-Dive (High-Torque Metal Servos)

The 6-axis articulation depends on two distinct variants of heavy-duty, dual-bearing metal servos mapped below:

1. SpringRC SR431 (4 Units Distributed at Base, Shoulder, Elbow, and Vertical Wrist): Dual-output analog PWM servos yielding a premium holding torque of 12.2 kg-cm @ 4.8V and scaling up to 14.5 kg-cm @ 6.0V to support heavy angular forces.

2. SpringRC SR311 (2 Units Distributed at Rotary Wrist and End-Effector Jaw): Lightweight structural servos designed for faster terminal response, generating a torque profile of 3.1 kg-cm @ 4.8V to 3.8 kg-cm @ 6.0V.

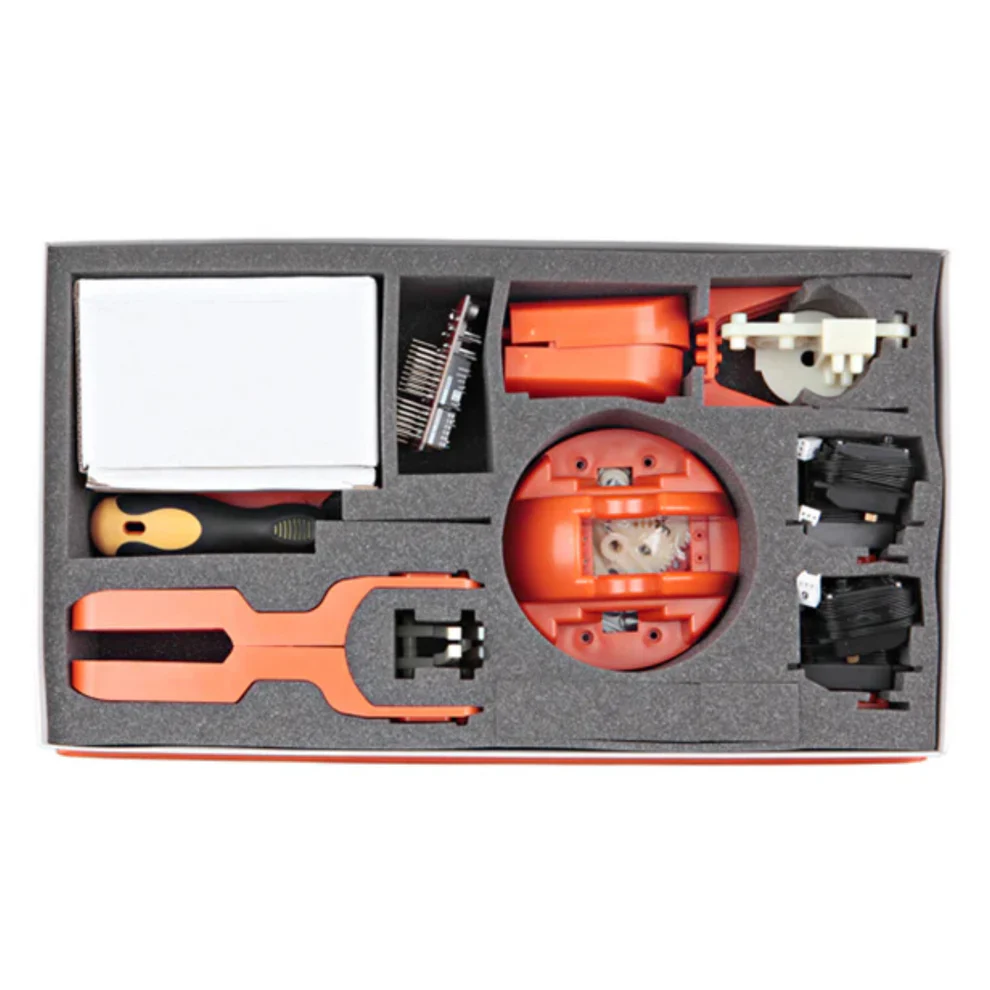

Complete Package Components List

• 21 x Precision-Molded ABS Structural Arm & Base Components

• 63 x Anti-Corrosive Assembly Screws

• 16 x Metal Flat Washers & 7 x Industrial Hexagon Nuts

• 2 x Internal Counter-Balancing Springs

• 4 x High-Torque SpringRC SR431 Dual-Output Metal servos

• 2 x Fast-Response SpringRC SR311 Metal Servos

• 1 x Official Arduino-Compatible Braccio Interface Expansion Shield

• 1 x Regulated, Low-Noise 5V 4A/5A Grounded Wall Power Adapter

• 1 x Industrial Phillips Screwdriver & 1 x Double Hexagon Box Wrench Tool

• 1 x High-Aesthetic Spiral Protective Cable Conduit Wrap

Key Performance Highlights & Features

• True 6-Axis Kinematics Simulation: Delivers a complete, independent six-axis rotational layout that realistically mimics structural manufacturing assembly rigs. Students gain hands-on experience calculating absolute Cartesian paths and relative tracking angles.

• Dedicated Smart Power Distribution Shield: The bundled Braccio Shield mounts directly over your Arduino UNO or Mega board. It isolates high-current servo demands from the delicate microcontroller logic board, completely removing the risk of board resets or component damage.

• Highly Versatile Modular Mounting Base: The end-effector jaw mount is engineered to be highly adaptable. Beyond using the standard plastic mechanical claw, developers can easily unbolt the gripper to mount solar radiation sensors, specialized custom magnets, or 3D-printed tool heads.

• Native Open-Source Software Canvas: Supported natively by the official Arduino IDE framework. Using the pre-built <Braccio.h> library allows beginners to configure multi-axis trajectories using clear, intuitive variables rather than tracing complex lower-level register loops.

Frequently Asked Questions (FAQs)

Q1: Does this kit include the main Arduino UNO or Mega microcontroller board in the standard box?

A: No, the standard Braccio kit is delivered as a complete mechanical assembly platform alongside its dedicated current-shield matrix. The core processing microcomputers (such as an Arduino UNO, Mega, or Due) must be sourced independently from the REES52 catalog.

Q2: What happens if the arm attempts to lift an object exceeding the 150g weight limit?

A: Attempting to lift items significantly heavier than the 150g rating at full extension can strain the shoulder and elbow servos, triggering high stall-current draws. To protect the internal metal gears and avoid motor burnouts, the built-in regulators on the Braccio Shield help buffer extreme current spikes.

Q3: Is manual calibration required for the six servo joints during the initial assembly?

A: Yes, manual alignment is necessary. When putting the arm together, you must run a basic calibration sketch inside the Arduino IDE. This moves all six servos to a baseline "safety alignment" point ($M1=90^{\circ}, M2=45^{\circ}, M3=180^{\circ}$), ensuring the physical gears are mounted perfectly aligned with the software coordinates.
